Steering Repair Kit Fits John Deere L110 L120 L130 G110 GX20054 19M7835 14M740
SPREAD THE LOVE
Description
New Aftermarket Replacement Steering Repair Kit
Fits John Deere Models L110, L120, L130, G110
Kit Contains:
(1) Left Hand Adjustable Draglink
Replaces Part Number: GY20491
(1) Right Hand Adjustable Draglink
Replaces Part Number: GY20492
(1) Pinion Gear
Replaces Part Number: GX20053

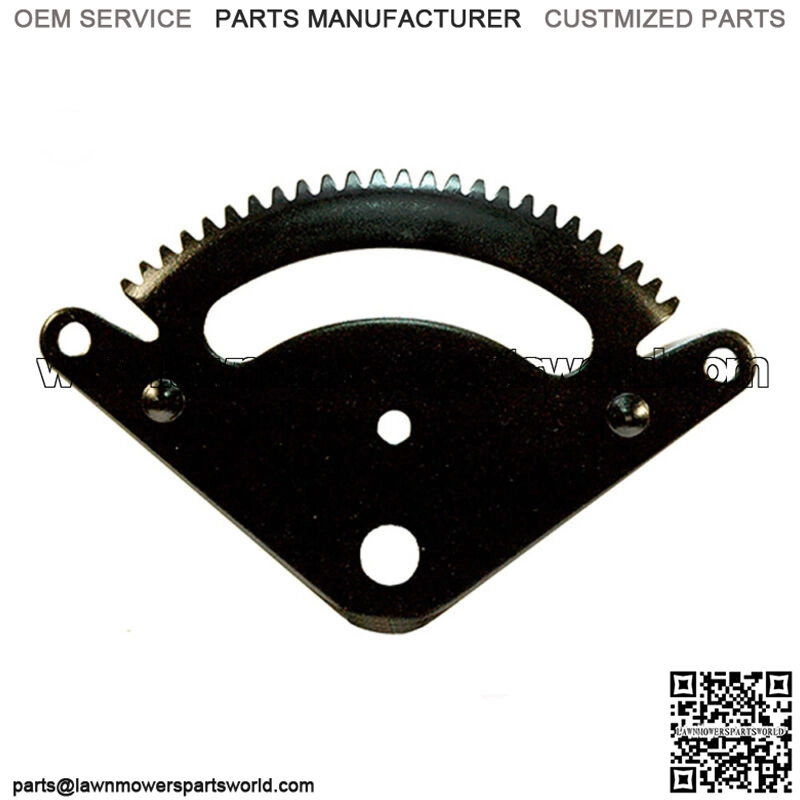

(1) Sector Gear
Replaces Part Number: GX20052
(1) Steering Gear Bushing
Replaces Part Number: GX20054
(1) Steering Bolt
Specifications:
Hex Flange Bolt
Thread Size: 10mm
Length: 35mm
Thread Pitch: 1.25mm
Replaces Part Number: 19M7835
(1) Lock Nut
Specifications:
10mm Nylon locking nut
Hex Flanged Nut
Replaces Part Number: 14M7400
(1) Flat Washer Specifications:
ID: .781″
OD: 1.25″
Thickness: .036″
Material: Steel
Replaces Part Number: 24H1856
(1) Steering Shaft Bushing
Specifications:
ID: .625″
OD: .900″
Height: .870″
Flange OD: 1″
Replaces Part Number: GX21994
(1) Lock Nut
Specifications:
8mm Nylon Lock Nut
Hex Flanged Nut
Replaces Part Number: 14M7396
(1) Lock Nut
Specifications:
10mm x 1.25mm Pitch
Replaces Part Number: 14M7455
(1) Shoulder Bolt
8mm Threads
Replaces Part Number: M153513
