Spindle Blade Belt for Bolens Ryobi Yard Man 13AD678 13AM662 13AV694 13BX614 42″

Premium Quality Replacement Part
Spindle Assembly w/Blade & Belt
For Ryobi Models :
13AD678G034 Lawn Tractor – 42″
13AN688G034 Lawn Tractor – 42″
For Bolens Models :
13AM662F765 (2004) Lawn Tractor – 42″
13AM662G765 (2004) Lawn Tractor – 42″
13AN683G163 (2003) Lawn Tractor – 42″
13AG683G163 (2003) Lawn Tractor – 42″
13AO683G163 (2003) Lawn Tractor – 42″
For Yard Man Model :
13AD683G713 (2004) Lawn Tractor – 42″
13AD674G401 (1998-1999) Lawn Tractor – 42″
13AX674G401 (1997 1999) Lawn Tractor – 42″
13AV694G401 (1997) Lawn Tractor – 42″
13AX694G401 (1997) Lawn Tractor – 42″
13AX614G401 (1997) Lawn Tractor – 42″
13BX694G401 (1998-1999) Lawn Tractor – 42″
13AT694G401 (1998) Lawn Tractor – 42″
13BX614G401 (1998) Lawn Tractor – 42″
13A1674G401 (1997) Lawn Tractor – 42″
13AT674G401 (1997) Lawn Tractor – 42″

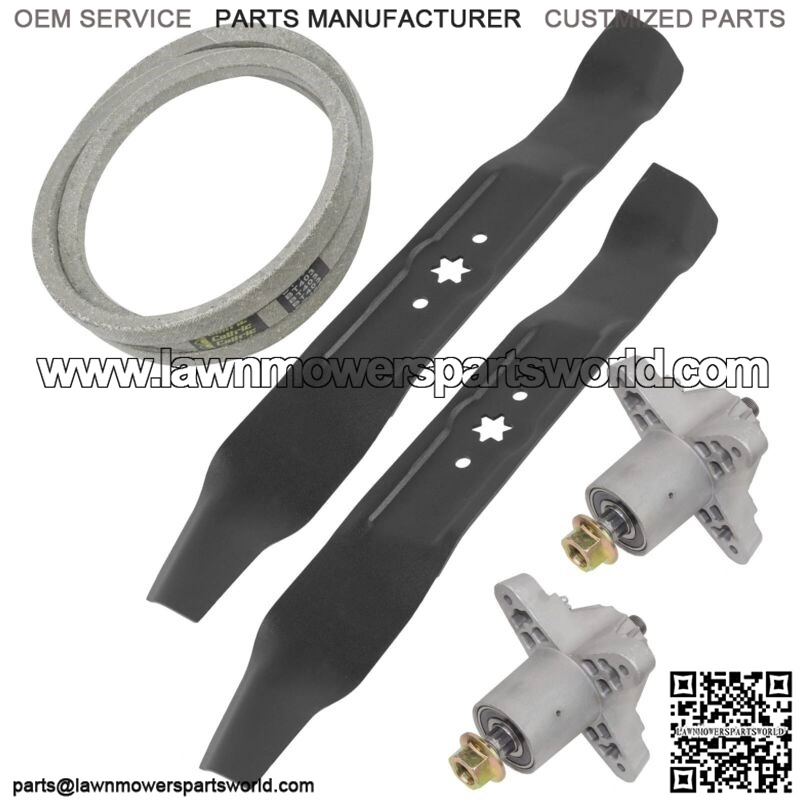

Order Includes:

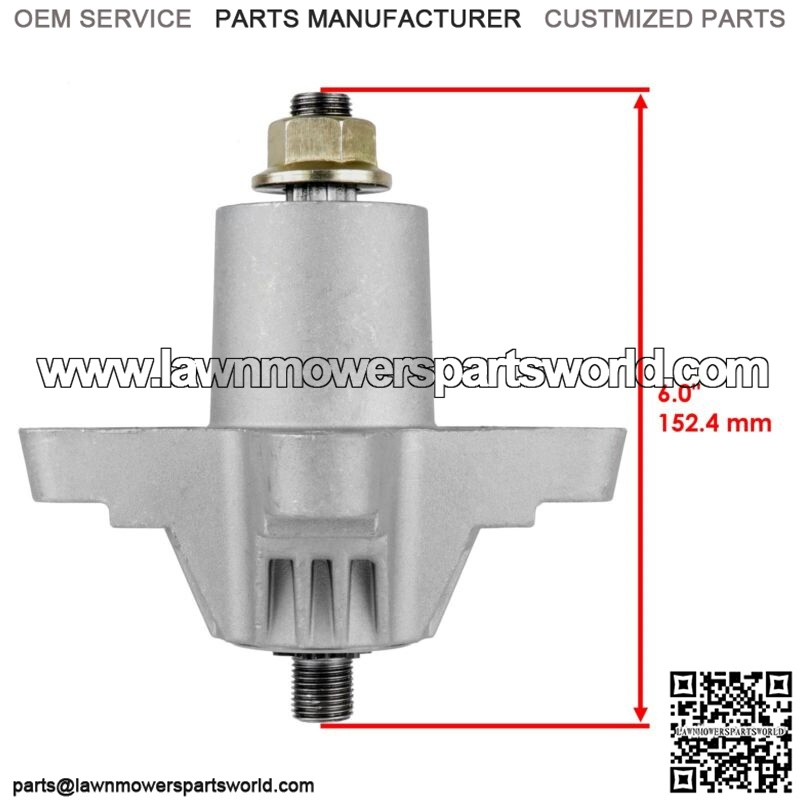

2 x Spindle Assembly : 918-0138 918-0412B 615-0142 618-0138 618-0142 918-0142 285-119
Height : 152.4mm | 6.0″

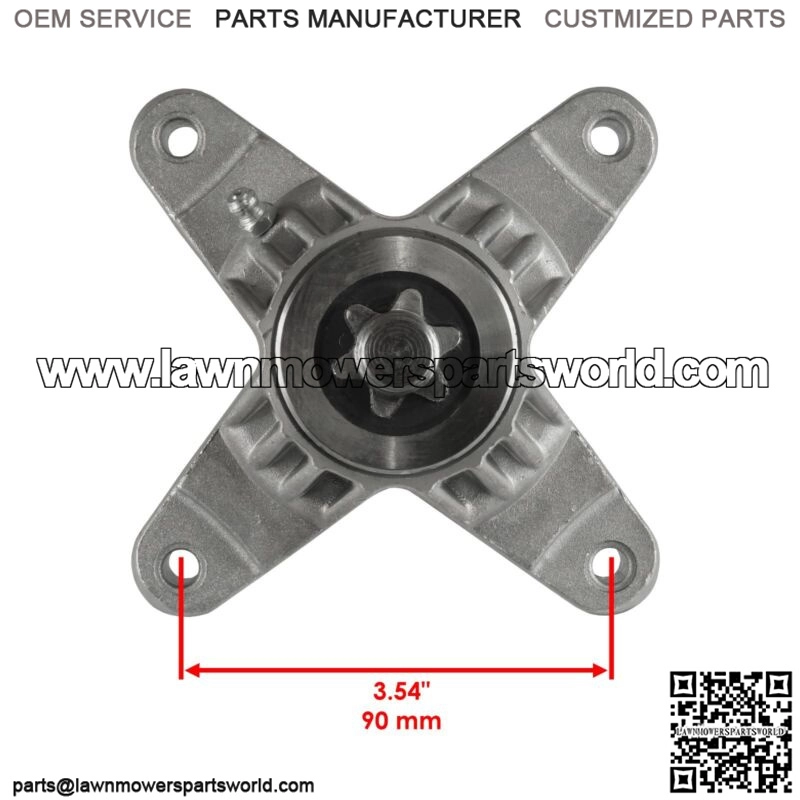

Hole Distance : 90mm | 3.54″

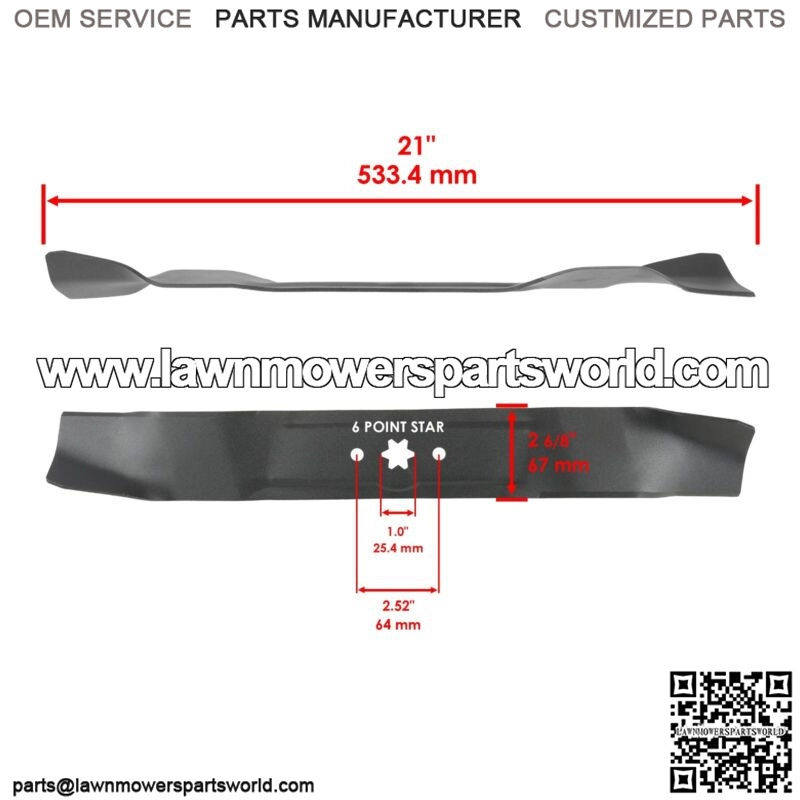

2 x Blade : SPM214685078 490-110-C109 490-110-C122 490-110-M115 112-0315 98022 335-807 335-711 742-04087 7420616 742-0616 742-0616A-0637 942-04087 942-0616 942-0616A GW-7420616
Length : 533.4mm | 21″
Width : 67mm | 2 6/8″
Hole Distance : 64mm | 2.52″

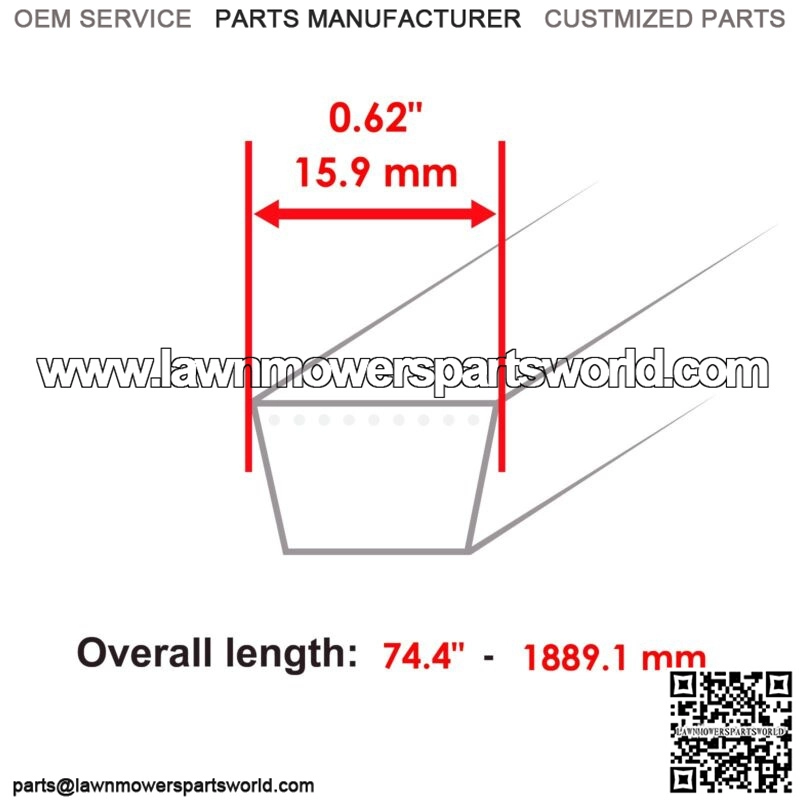

1 x Belt : 754-0371A 754-0371 954-0271A 954-0371A 265-116
Width : 15.9mm | 0,62″
Overall Length :1889.1mm | 74.4
Note :
Mounting holes do not have thread.Power tool is needed to install the bolts.It is designed to withstand the vibration.
