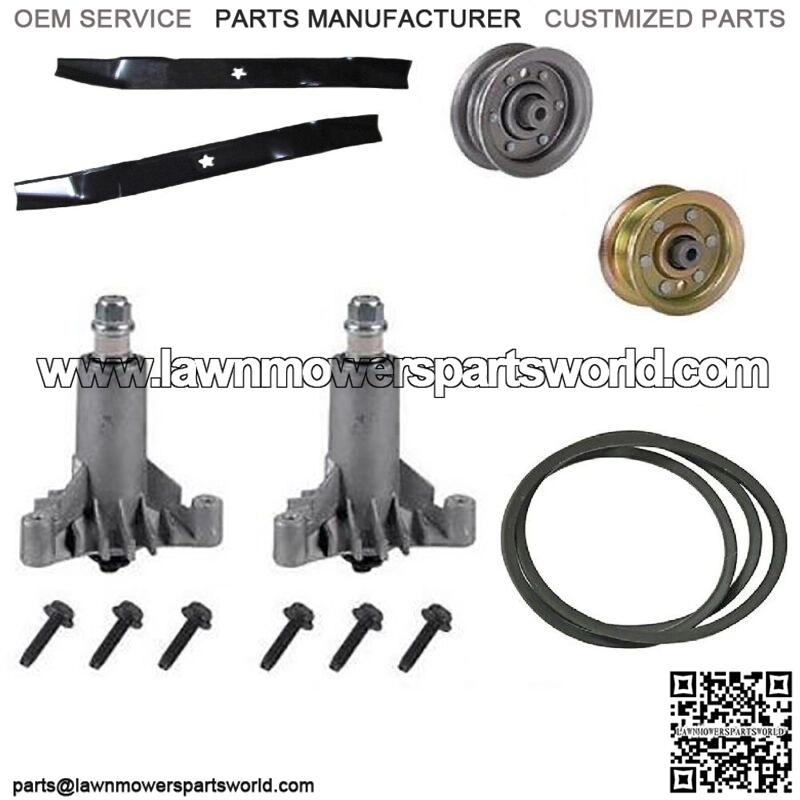

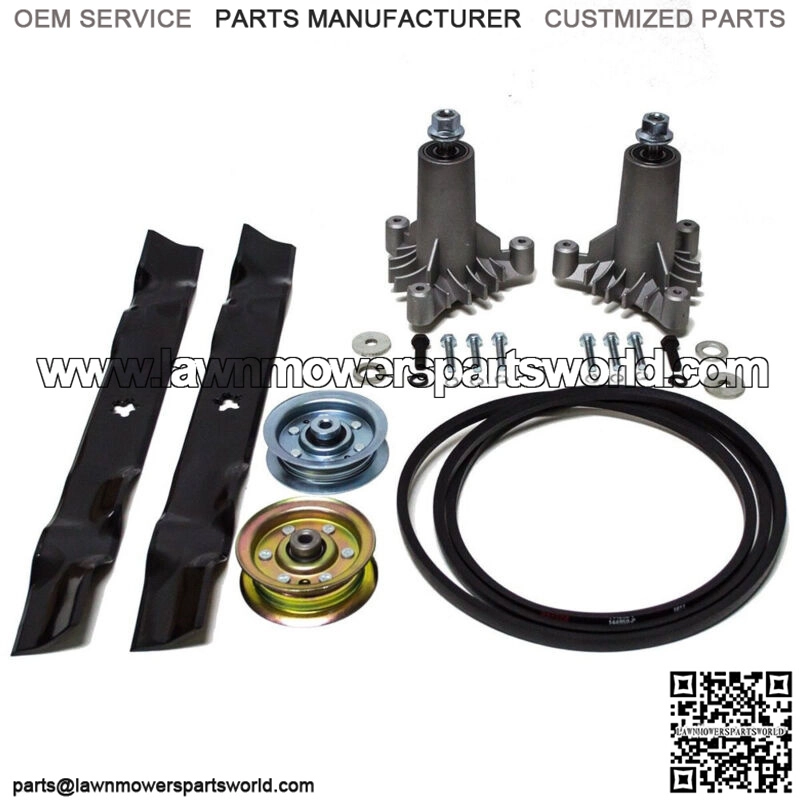

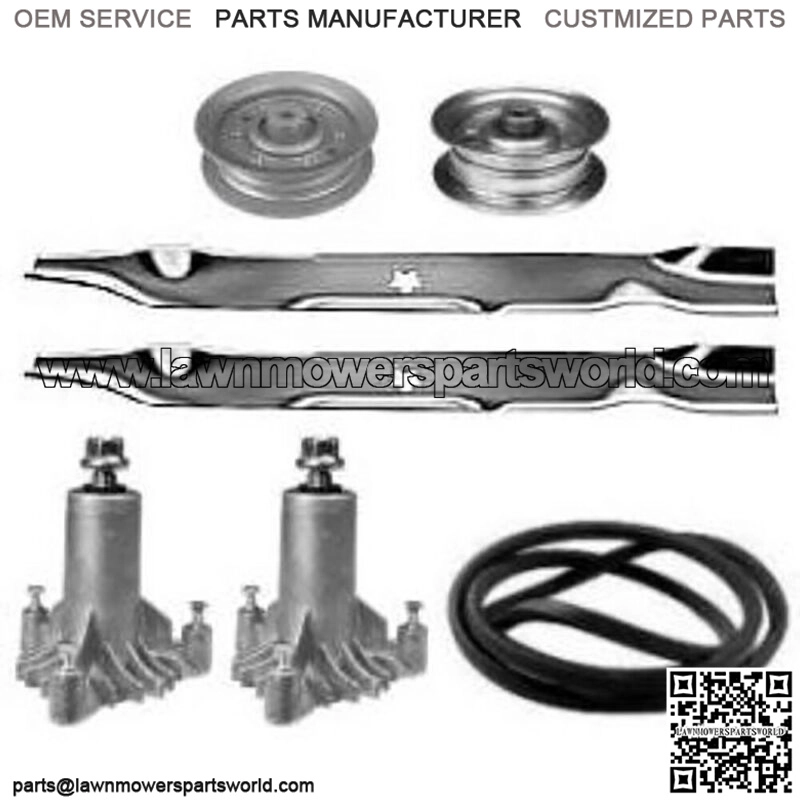

Deck Rebuild Kit.
Kit Includes:
(2) Mulching Lawn Mower Blade(2) Spindle Assembly(1) Deck Belt(1) Flat Idler Pulley(1) Flat Idler Pulley
Replaces Part Numbers:
532174883, 138498, 131494, 173437, 144959, 130794, 134149, 24676, 422719, 24690, 144959D
Mulching Lawn Mower Blade –
Requires 2 Blades for 42″ Deck
Length: 21″
Width: 2-1/4″
Center Hole: 5 Point Star
Thickness: .134″
Flat Idler Pulley –
Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875″ (3 7/8”) OD
0.375” (3/8″) ID
Flat Idler Pulley –
Steel
Fits 42″ Decks, 2000 & Later
3.06″ OD
3/8″ ID.
Deck Belt –
Color: Brown
Length: 95-1/2″
Thickness: 0.374″
Type: Wrapped
Width: 1/2″
Spindle Assembly –
3-Bolt Long
5 Point Star Center Hole
