Lawn Mower Deck Rebuild Kit For John Deere 42" LA100 LA105 LA110 LA115 LA120

Lawn Mower Deck Rebuild Kit For John Deere 42″ LA100 LA105 LA110 LA115 LA120

SKU QDTJ.00476 Category Tag

Lawn Mower Deck Rebuild Kit For John Deere 42″ LA100 LA105 LA110 LA115 LA120

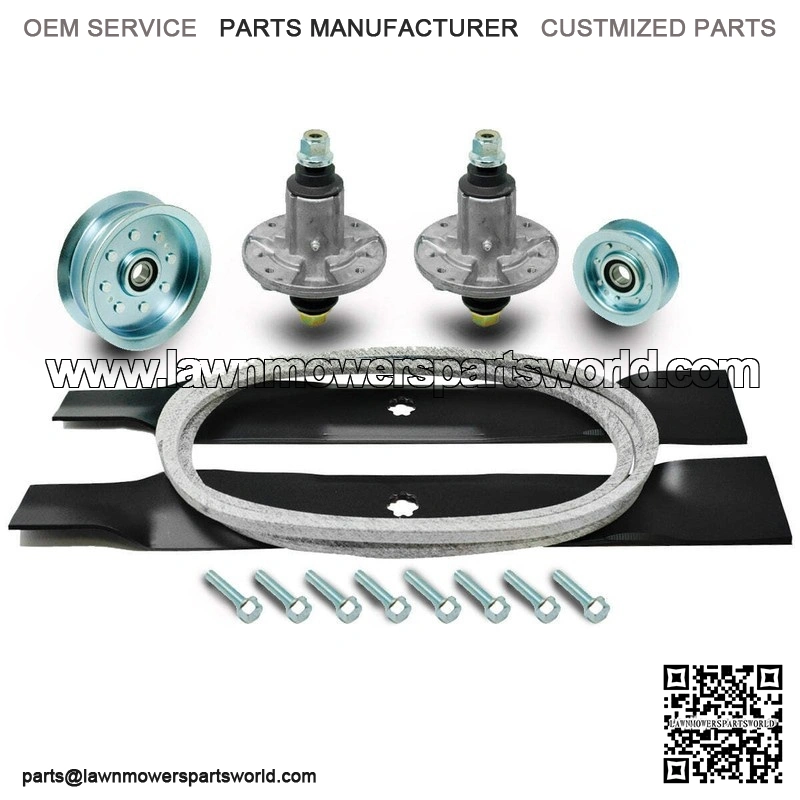

Kit Includes: (2) Spindles (2) Blades (1) Belt (1) Pulley (1) Idler Pulley
Kit Fits Models:
42″ Deck 102, 105, 115, 125, 135, D100, D105, D110, D120, D130, LA100, LA105, LA110, LA115, LA120, LA125, LA135
Replaces OEM Part Numbers:
Spindle: GX21694, GY20454, GY20867, GY20962, GY21098, M149625
Blade: AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422
Belt: GX20072, GY20570
Pulley: GY20629, GY20110
Pulley: GY22172, GY20067
Spindle Specifications:
OD: 5″
Height: 7″
Specially Designed: To replaces 7 pt star spindle shaft
Blade Specifications:
Length: 21-3/8″
Width: 2-3/4″
C. H. DIA: 7
Thickness: 0.1550
Belt Specifications:
Belt Application: Engine to deck Belt
Type: Covered
Width: 1/2″
Length: 104″
