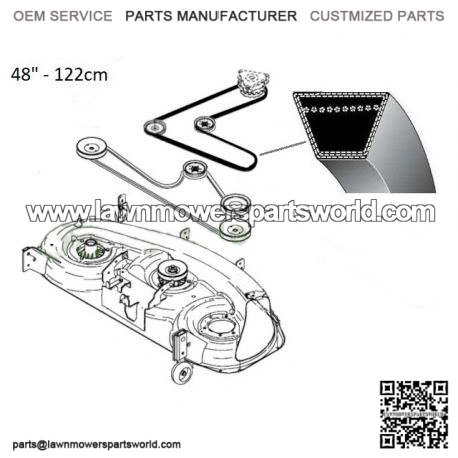

More information about the product Husqvarna GTH2248, YTH1848XP lawn tractor drive belt wedge no. 532174368
Outer length: La2295mm
Working length: Lw2279mm
Inner length: Li2233mm
Width: 16mm (5/8″)
Height: 10mm
Manufacturer: Kramp FGP013556 5L900K
Replacement / Original No. – 5321743-68
Application: Brand Models / Type
CRAFTSMAN DLT2000 HUSQVARNA GTH2248, GTH2548, YTH1848XP, YTH2048A, YTH2148, YTH2248A, YTH2448, YTH2748, YTHK1848XPA JONSERED LT19A, LT2119A, LT2122A , LT2122A2, LT2223A2, LT2323A2, YT48 PARTNER P18H122
How to measure a belt:
Outer circumference – LA is measured on the outside of the belt. In the case of longer belts, it is important to measure in an arc on the outside (with a tailor’s tape measure).
Working circumference – LW is measured in a straight line, after cutting, by stretching the tape measure along the belt (with a measuring tape).
Inner circumference – LI is measured inside the belt (with a special tape measure for belts).
It is also important to remember about the
Width of the belt, If the original belt is 13mm (1/2″) wide, you should not use a 10mm (3/8″) or 17mm (5/8″) wide belt.
