Husqvarna Combi 103 V-Belt

SKU PD.13674 5850345-01,5895146-01 Category Tags ,

SPREAD THE LOVE

Description

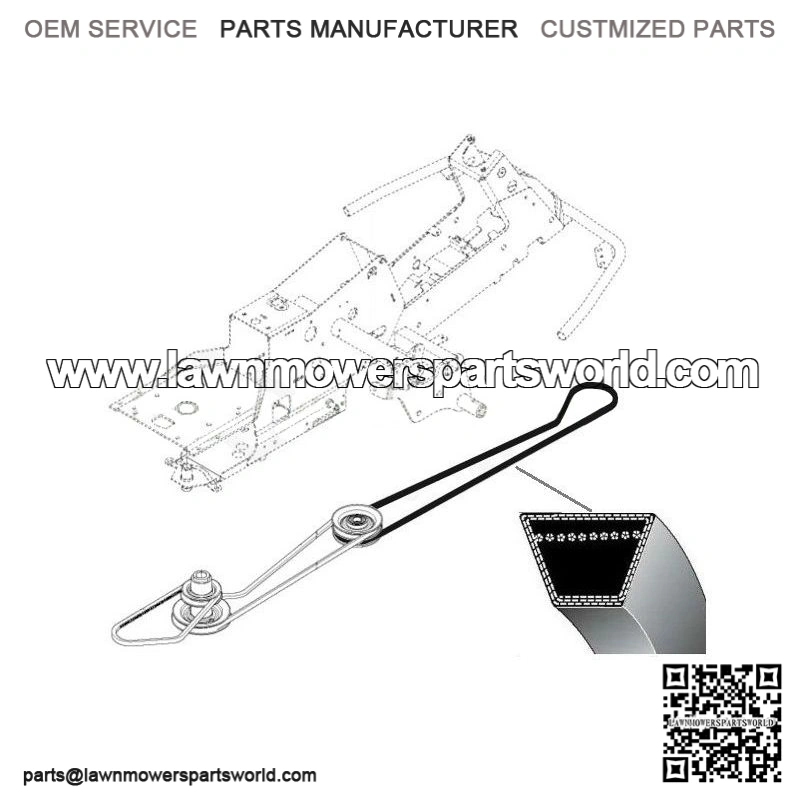

More product information Universal belt A 80″li, A 82’La for the drive of the Combi 103, Combi 103XP lawn mower from Husqvarna Outside length: La2090mm.
Working length: Lw2074mm
Inside length: Li2032mm.
Width: 13mm (1/2″)
Height: 8mm
Manufacturer: PIX A 80″li 13x2032Li
Replacement / Original No. – 5850345-01, 5895146-01
Application:
Brand Models JONSERED FR2216A, FR2216A 4×4, FR2216A2, FR2216A2 4×4, FR2216FA, FR2216FA2, FR2216FA2 4×4, FR2218FA2, FR2218FA2 4×4, FR2318FA, FR2318FA 4×4 HUSQVARNA Rider Pro 15, PR15, Rider Pro 18, PR18 AWD, R316T, R316T AWD, R316Ts AWD, R318, R320 AWD, Rider 15T, Rider 15T AWD, R15Ts AWD, Rider 155, Rider 155 AWD, Rider 15V2, Rider 15V2 AWD, Rider 16, Rider 175, Rider 175AWD, Rider 18, Rider 18 AWD
How to measure a belt:
Outer circumference – LA is measured on the outside of the belt. In the case of longer belts, it is important to measure in an arc on the outside (with a tailor’s tape measure).
Working circumference – LW is measured in a straight line, after cutting, by stretching the tape measure along the belt (with a measuring tape).
Inner circumference – LI is measured inside the belt (with a special tape measure for belts).
You should also remember about the
Width of the belt, if the original belt is 13mm (1/2″) wide, you should not use a belt with a
Width of 10mm (3/8″) or 17mm (5/8″).
