Premium Quality Replacement Part
Drive Pulleys
For John Deere Models:
L120 Lawn Tractor
L130 Lawn Tractor
CV23S – Engine
LA100 Tractor (100 Series) with 42-Inch Mower Deck
31P677 – Engine
LA105 Tractor (100 Series) with 42-Inch Mower Deck
LA110 Tractor (100 Series) with 42-Inch Mower Deck
LA115 Tractor (100 Series) with 42-Inch Mower Deck
Order Includes:

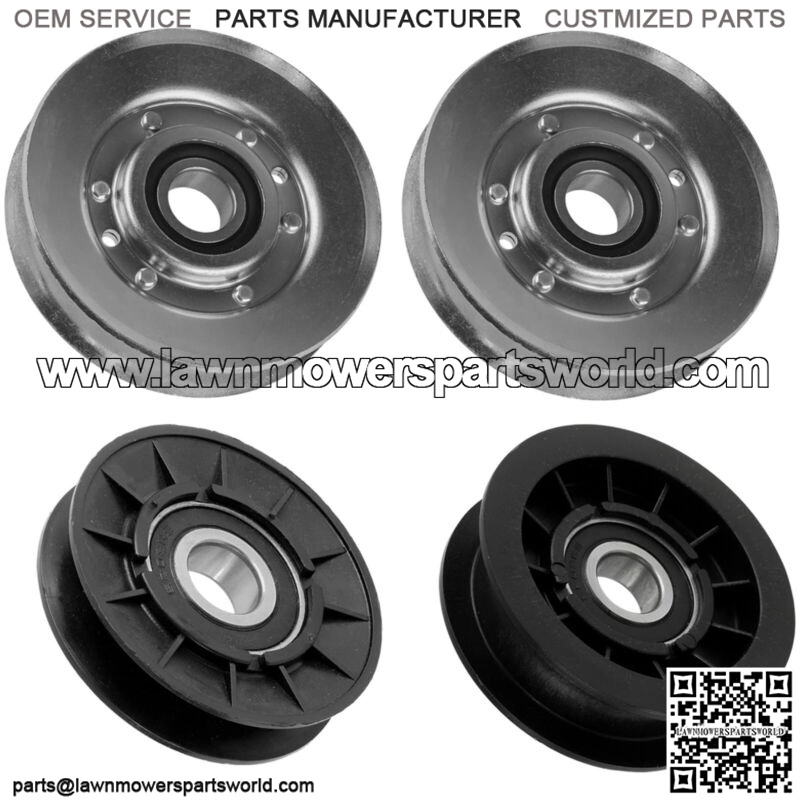

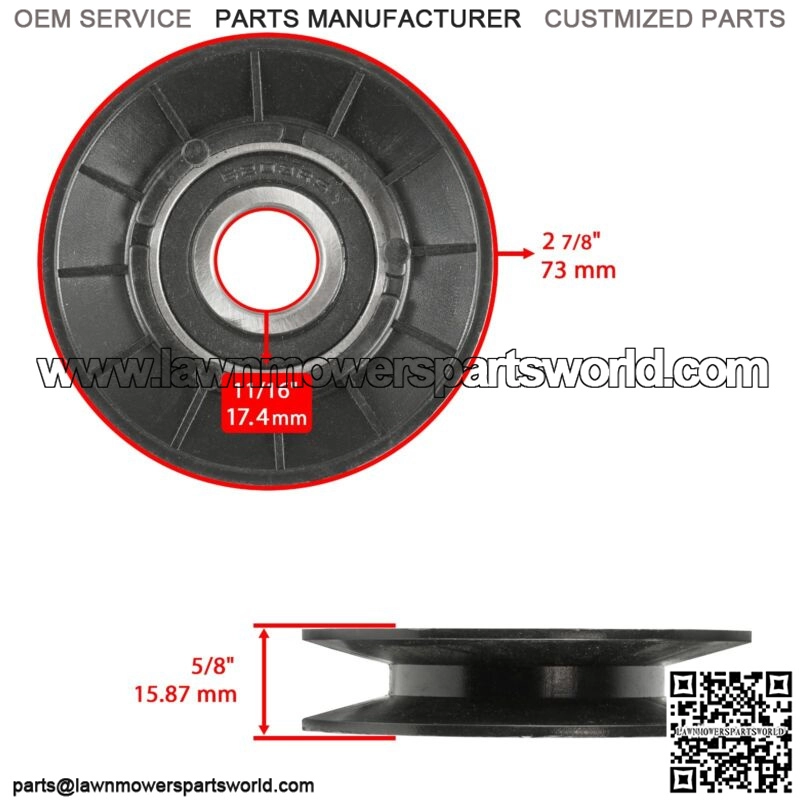

1 x Powertrain Drive Pulley | AM103019 AM32672 GX20286
1760097 GW-1760097 280-143
Width : 15.87mm | 5/8″
Inner Diameter : 17.4mm | 11/16″
Outer Diameter : 73mm | 2 7/8″

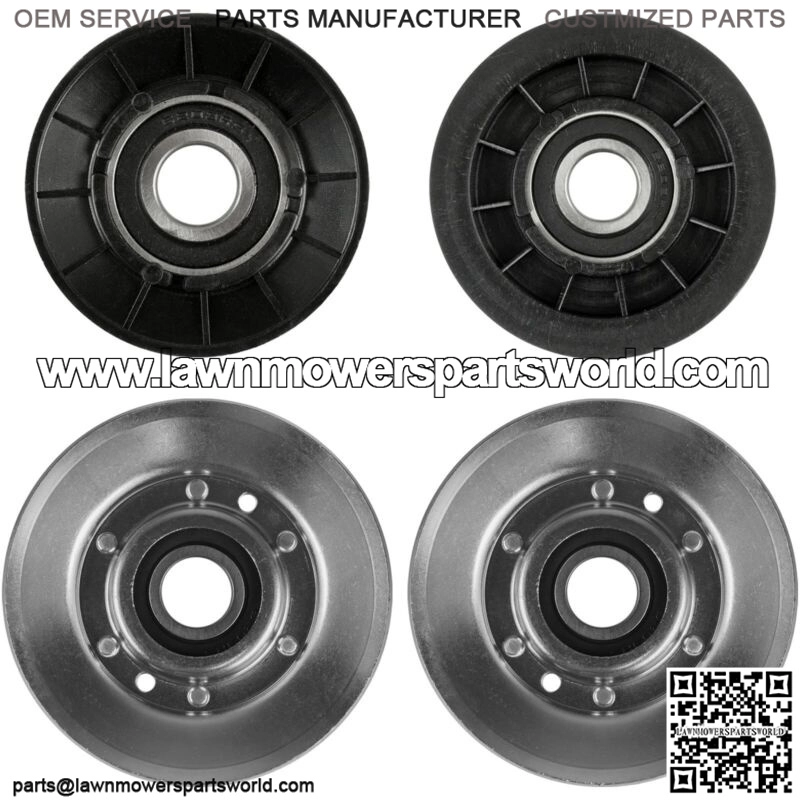

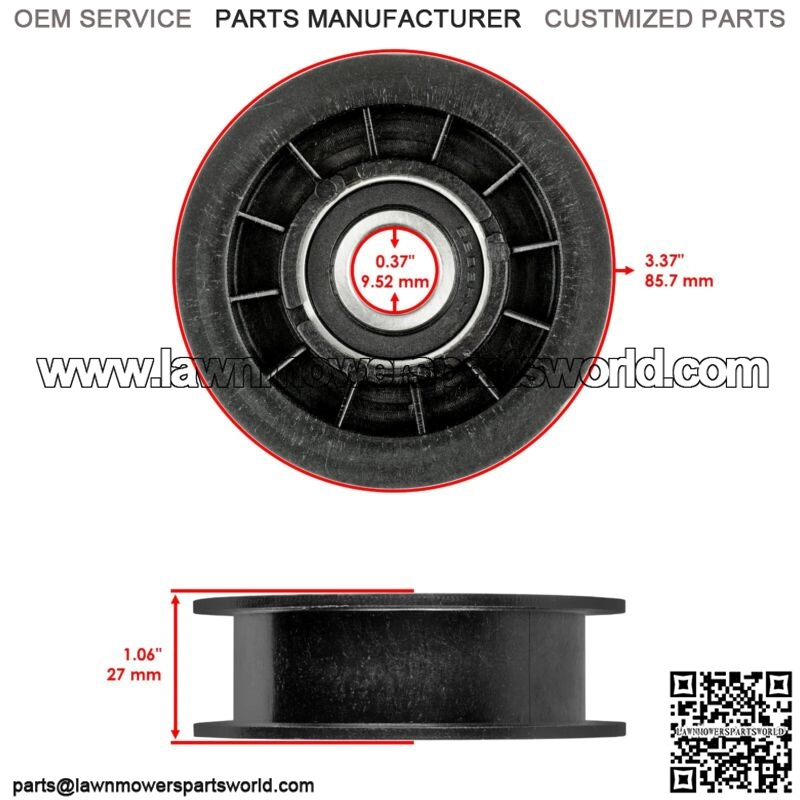

1 x Idler Pulley | GX20287 690409 690409MA 280-097
Width : 27mm | 1.06″
Inner Diameter : 9.52mm | 0.37″
Outer Diameter : 85.7mm | 3.37″
2 x V-Groove Idler Pulley | AM118447 280-309
Width : 17mm | 0.67″
Inner Diameter : 17mm | 0.67″
Outer Diameter : 95mm | 3.74″
