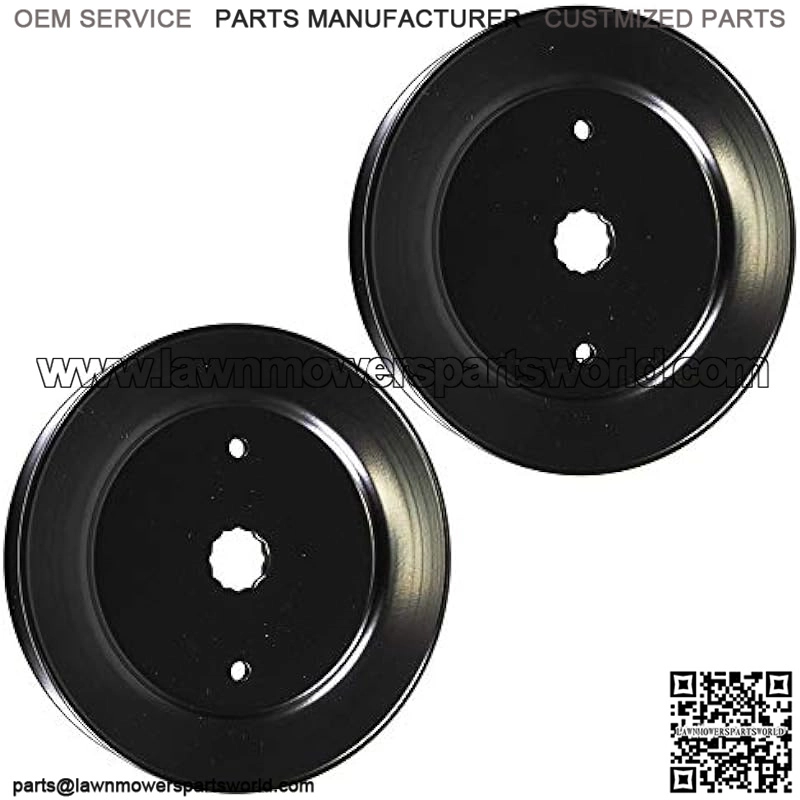

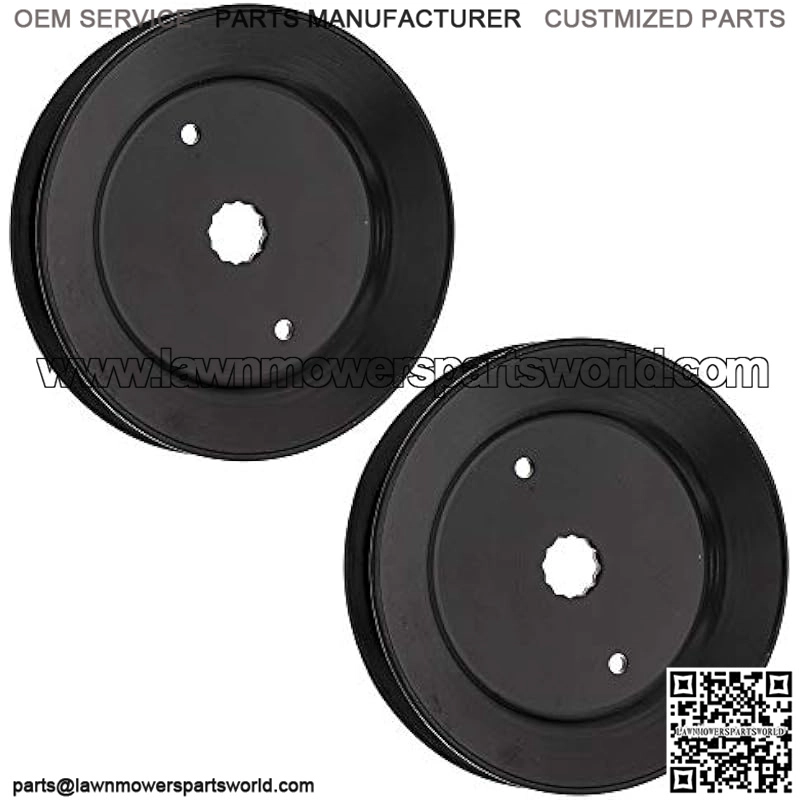

Deck Spindle Pulley for Husqvarna GT200 GTH225 LR 100 YT180 YTH180 EZ4824 129207 153531 173434 532173434 2 Pack

Replaces OEM Part Numbers: AYP 129207, 153531, 173434, 532173434, Dixon 173434, 532173434
Replaces OEM Part Numbers: Husqvarna 532129207, 532153531, 532173434
Compatible with: Husqvarna CT130, CTH130, LR100, LR110, LR111
Compatible with: Husqvarna LR120, LR121, LR122, LT100, LT112, LT125
Pulley Specs: Outer Diameter 4-5/8″Shop LawnRAZOR Blades
Visit the Store
Shop Mower Parts
Visit the Store
Shop Bars and Chains,810-CPL2226Y
About 8TEN
8TEN Parts provides lawn & garden replacement parts. Some of the 8TEN Parts product categories include blades, spindles, pulleys, idlers, and chainsaw chains. 8TEN Parts are here for when you need them the most.
8TEN Idler Pulley Part Number 810-CPL2226Y
Includes: 8TEN Idler PulleyCompatible with the following brands: AYP, Dixon, Husqvarna Compatible with the following models: GT200, GTH225, LT125, YT180, YTH 180Replaces for the following OEM MPN’s: 129207,153531,173434,532173434,173434,532173434,532129207,532153531,532173434,275-288
Inner Diameter: 0.645 inch
Outer Diameter: 4 5/8 inches
Height: 13/16 inch
Idler Pulley Dimension Terms
Width: The distance from side to side of the pulley, the area where the belt is foundInside Diameter: The distance across the center hole, This dimension should match the diameter of your shaft or boltOutside Diameter: The distance across the circle of the product, from outside edge to outside edge. For flat idler pulleys, this will include the flanges
Back Side Offset: The width from the center of the pulley to the backside edge of the hub or bore adapterFrontside Offset: The width from the center of the pulley to the front edge of the hub, bearing, or bore adapterThroughbore: Length of the bore, from one edge to the other. The Frontside Offset and Backside offset together equal the length of the throughbore
Bearing ID: The inside diameter of the bearing used in the pulleyFlanges: These are protrusions out from the center of a pulley, designed to keep a belt from slipping offStickout: The distance from the edge of the pulley??s flange to the edge of the bore adapter or hub.
8TEN Idler Pulley Uses
Redirect the beltKeep the belt in placePress against the belt to cause the belt to engageThe goal of an 8TEN idler pulley is to move power or items from one place to another8TEN idler pulleys move power by having a drive pulley attached to a motor, that will cause another pulley, the drive pulley, to spinIdler pulleys are pulleys in a system that are not connected directly to the power source, and cannot increase speed or torque
