Premium Quality Replacement Part
Drive Pulleys with Belts
Compatible with MTD Models:
13AL605H057 Brute Lawn Tractor (2009)
13AT605H718 Pro Lawn Tractor (2006)
Compatible with Yard Machines Lawn Tractor
13AI608G129 (2000), 13AG601H729 (2005)
13AN601H729, 13AP605H755 (2006)
13AX605G755 (2006), 13BP605H755 (2007)
13BX605G755 (2007)
Compatible with Huskee Lawn Tractor
13AB606H730 (2005)
Compatible with Troy-Bilt Models:
13AJ609G766 Bronco Lawn Tractor (2005)
Super Bronco Lawn Tractor
13AT609G766 (2005), 13AX60TG766 (2006)
13BX60TG766 (2007)
13AP60TP766 Horse Lawn Tractor (2006)
Compatible with White Outdoor Models:
Lawn Tractor
LT-942 G (13AX605G790) (2006)
LT-946 G (13AP606H790) (2006)
Compatible with Cub Cadet Models:
Lawn Tractor
LT 1040 (13AX10CG709)
LT 1040 (13AX10CG710)
LT 1040 (13BX10CG710)

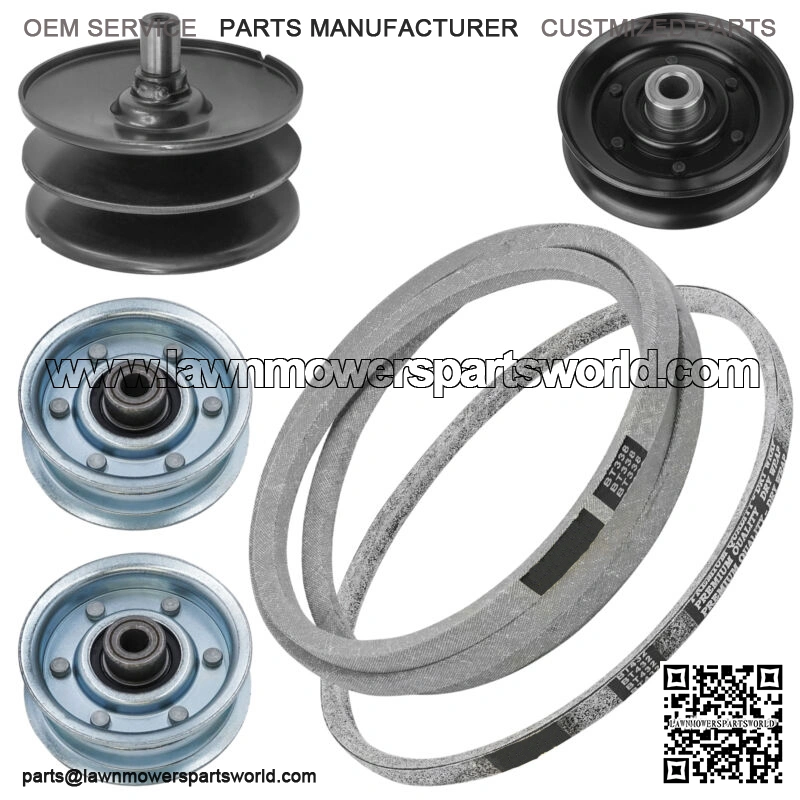

Order Includes :

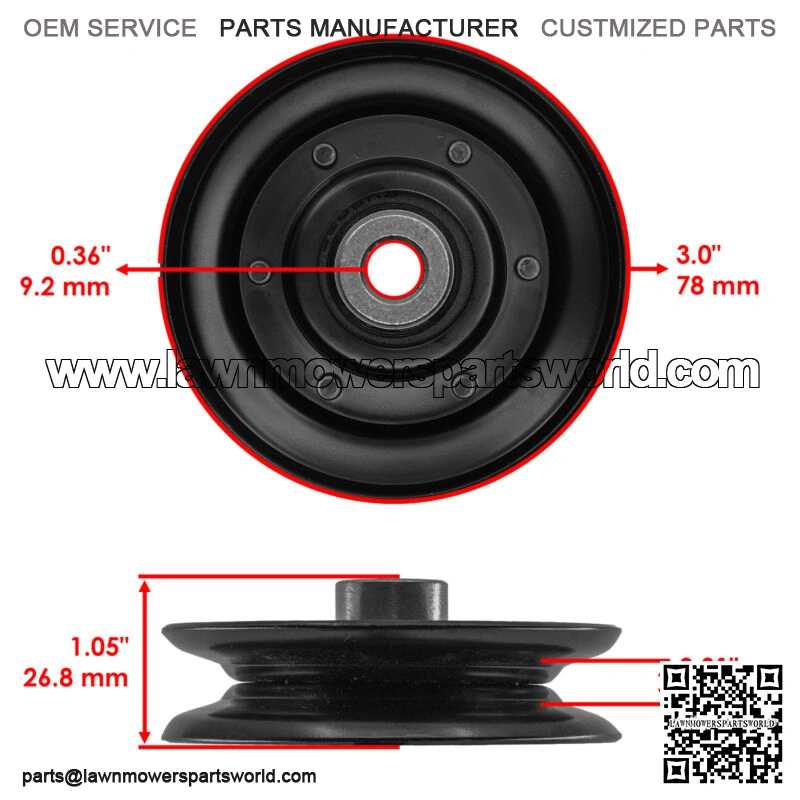

1 x Pulley: 756-0116, 756-0116A, 756-04209, 756-04241, 756-116, 756-1207
Width: 26.8mm – 1.05 in
Inner Diameter : 9.2mm – 0.36 in
Outer Diameter : 78mm – 3.0 in
Material: Steel
1 x Variable Speed Pulley Assembly: 956-04015B, 956-04015A, 656-04015B
956-04015, 656-04015A, 918-04148, 656-04015, 956-0059A
956-0059B, 656-0059B, 656-0059A, 656-0059, 618-04148
656-05011, 918-04423A, 918-04147, 618-04147, 618-04423A
Width : 94.4mm – 3.71 in
Inner Diameter : 7.1mm – 0.27 in
Outer Diameter : 121mm – 4.76 in
Material: Steel

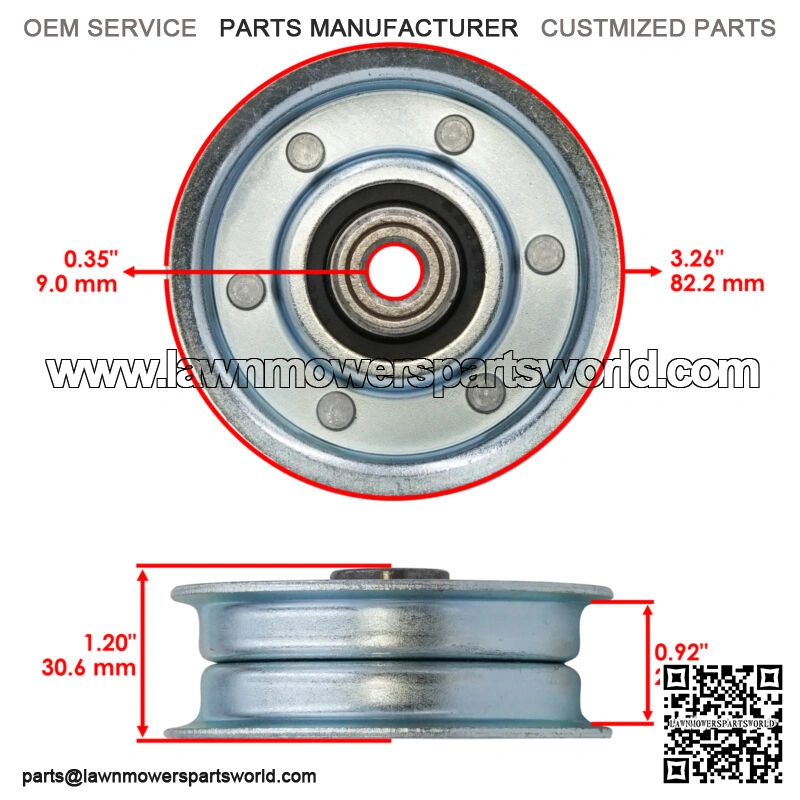

2 x Transmission Pulley: 956-0981, 756-04224, 756-0981B, 756-0981A, 756-0981
Width : 30.6mm – 1.20 in
Inner Diameter : 9.0mm – 0.35 in
Outer Diameter : 82.2mm – 3.26 in
Material: Steel

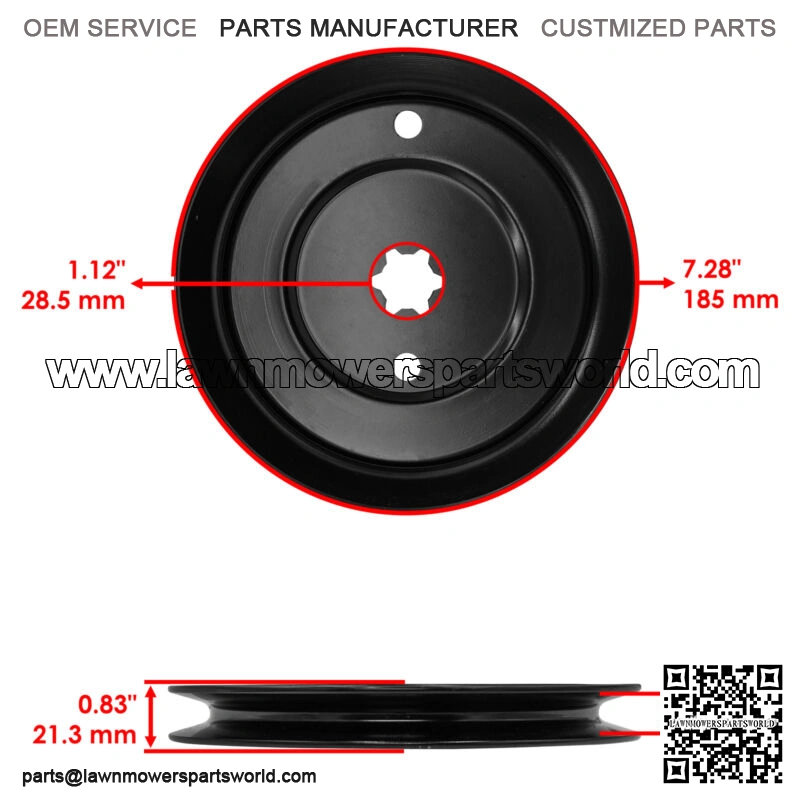

1 x Transmission Pulley: 956-04002, 756-04002
Width : 21.3mm – 0.83 in
Inner Diameter : 28.5mm – 1.12 in
Outer Diameter : 185mm – 7.28 in
Hub Width: 18 8mm – 0 74 in
Hub Inner Diameter: 15 5mm – 0 61 in
Hub Outer Diameter: 41 25 – 1 62 in
Teeth: 36
1 x Lower Drive Belt: 954-0467, 954-0467A, 754-0467, 754-0467A, 1120301
Overall Length: 2311.4mm – 91 in
Width: 11.32mm – 0.44 in
Thickness: 16.30mm – 0.64 in
1 x Upper Drive Belt: 954-0468, 754-0468, OEM-754-0468, 112-0305
Overall Length: 1066.8mm – 42 in
Width: 15.875 mm – 0.625 in
Thickness: 11.5mm – 0.45 in
Material: Polyester
