Premium Quality Replacement Part
Deck Blade with Flange Lock Nut
Compatible with Toro Models:
Lawn Tractor 42″
13BX60RG544 (LX 425) (SN: 1A087H10172 – 1E237H10144) (2007)
13BX60RG544 (LX 425) (SN: 1E237H10145 & Above) (2007)
13BX60RG744 (LX 425) (SN: 1A087H10172 – 1C307H10417) (2007)
13BX60RG744 (LX 425) (SN: 1C307H10418 & Above) (2007)
13BX60RG748 (LX 425) (SN: 1A087H10172 – 1E087H10250) (2007)
13BX60RG748 (LX 425) (SN: 1E087H10251 & Above) (2007)
13RL60RG044 (LX 426) (SN: 1L107H10100 & Above) (2008)
13RL60RG244 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AL60RG044 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AL60RG048 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AL60RG544 (LX 426) (SN: 1L107H10100 & Above) (2008)
13AX60RG544 (LX 420) (SN: 1L215B10000 & Above) (2006)
13AX60RG744 (LX 420) (SN: 1L215B10000 & Above) (2006)
13AX60RG848 (LX 423) (2009)
13AX61RG848 (LX 427) (SN: 1A019H10001 – 1A309H19999) (2009 & Before)
(LX 427) (SN: 1A319H10001 – 1L319H19999) (2009 & After)
Order Includes:

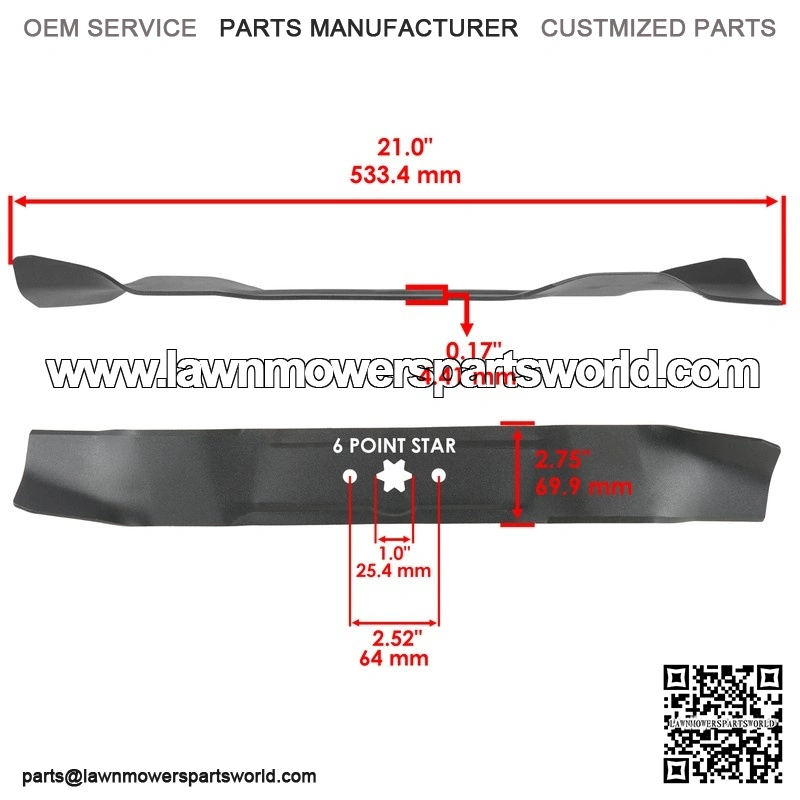

2 x Deck Blade: 942-0616A, 112-0315, 98022
Length: 533.4 mm – 21 in
Width: 69.9 mm – 2.75 in
Thickness: 4.41mm – 0.17 in
Inner Diameter: 25.4mm – 1 in
Mounting Hole Distance: 64mm – 2.52 in
Point Star 6

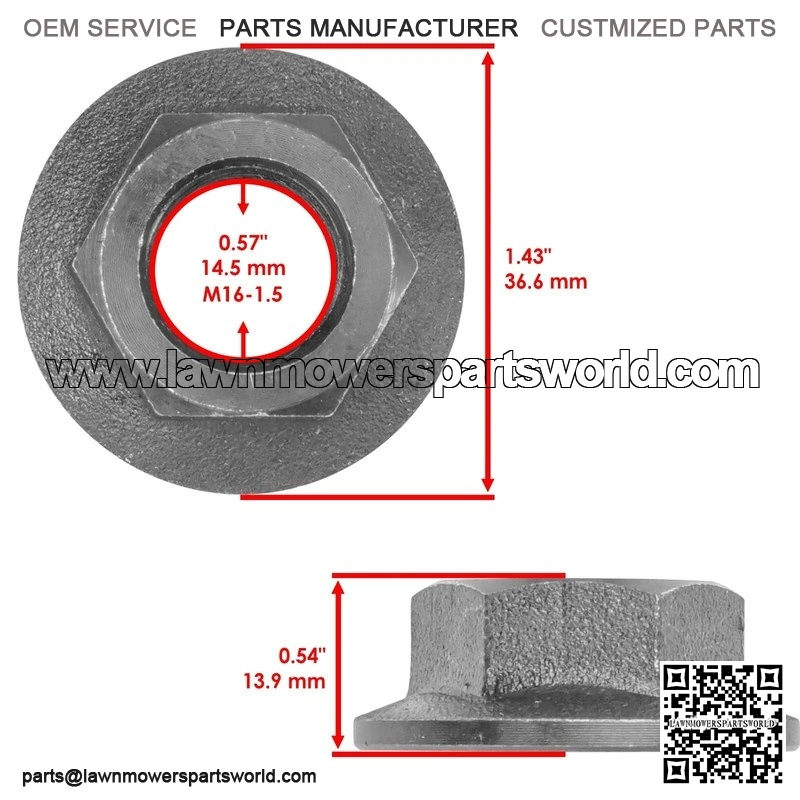

2 x Flange Lock Nut: 112-0330
Width : 13.9mm – 0.54 in
Inner Diameter: 14.5mm – 0.57 in
Outer Diameter: 36.6mm – 1.43 in
Material: Iron
