Premium Quality Replacement Part
Mower Deck Spindle Assembly with Pulley / Blade / Belt Kit
Compatible with Gravely Zero-Turn Mower:
991038 (ZT 2760 HD) 60″ 27hp Kh Courage (SN: 000200 & Above)
991041 (ZT 2660 HD) 60″ 26hp B & S (SN: 000200 & Above)
991055 (ZT 2560 HD) 60″ 25hp Kh (SN: 000101 & Above)
991057 (ZT 2760 HD) 60″ 27hp Kh (SN: 000101 & Above)
991070 (ZT 60 HD) 60″ Kaw. (SN: 000101 & Above)
991084 (ZT 60 HD) 60″ Kaw. (SN: 000101 – 060000 & Above)
991091 (ZT 60 HD) 60″ Kaw. (SN: 000101 – 020000 & Above)
Compatible with Ariens Max-Zoom Zero-Turn Mower:
991075 Max-Zoom HD 60″ 24hp Kaw. (SN: 000101 & Above)
991087 Max-Zoom 60″ 24hp Kaw. (SN: 000101 – 059999)

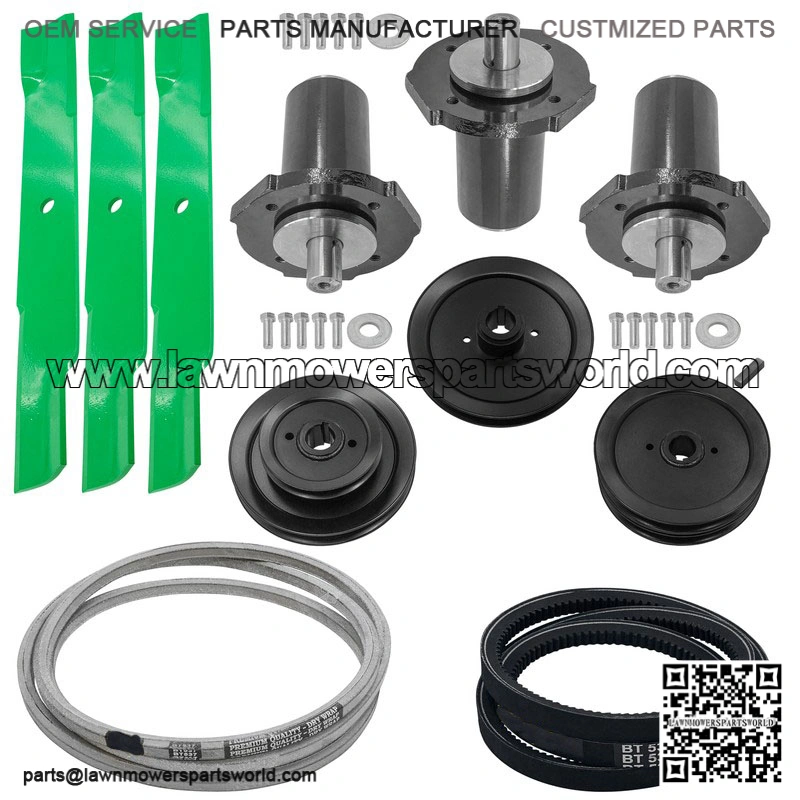

Order Includes:

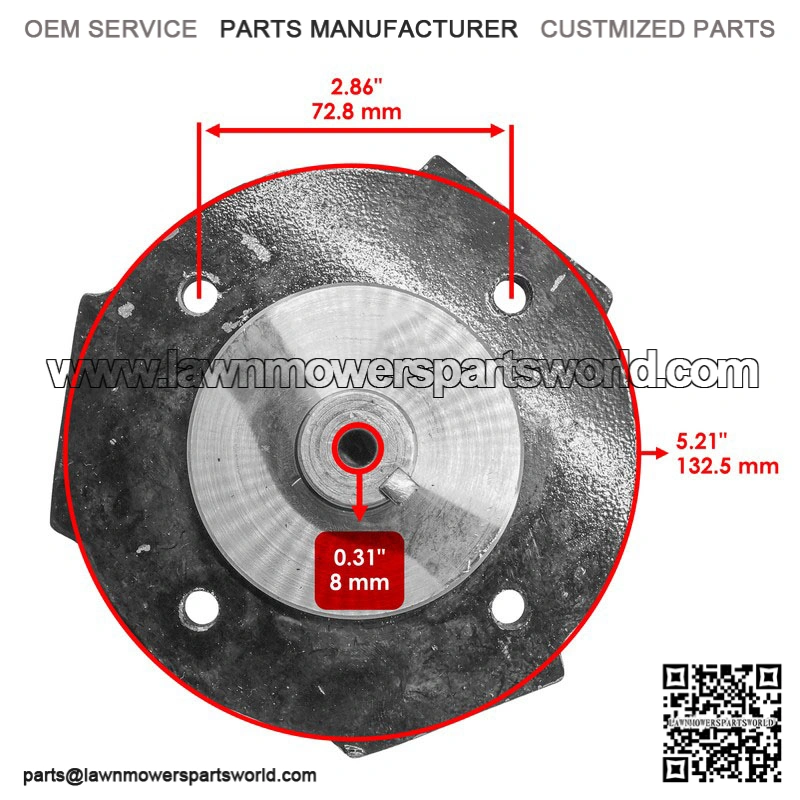

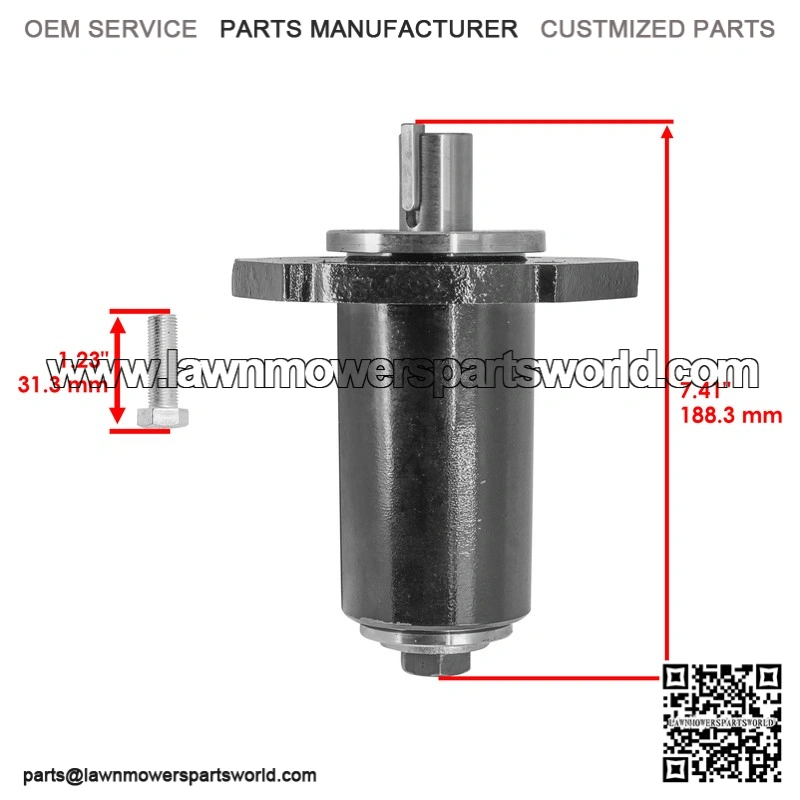

3 x Spindle: 69219700 59225700
Height: 7.41 in – 188.3 mm
Mouting Bolt Length: 1.23 in – 31.1 mm
Inner Diameter: 0.31 in – 8 mm
Outer Diameter: 2.86 in – 132.5 mm
Mouting Hole Distance: 2.86 in – 72.8 mm
3 x Deck Medium-Lift Blade:
03253900, 8979600, 08979651, 46999
8979651, 046999, 89796, 08979600
Stens: 355-600
Length: 20.37 in – 517.5 mm
Width: 2.51 in – 64 mm
Thickness: 0.20 in – 5.3 mm
Hole Diameter: 0.64 in – 15.5 mm
Type: Medium-Lift
Powder Coated

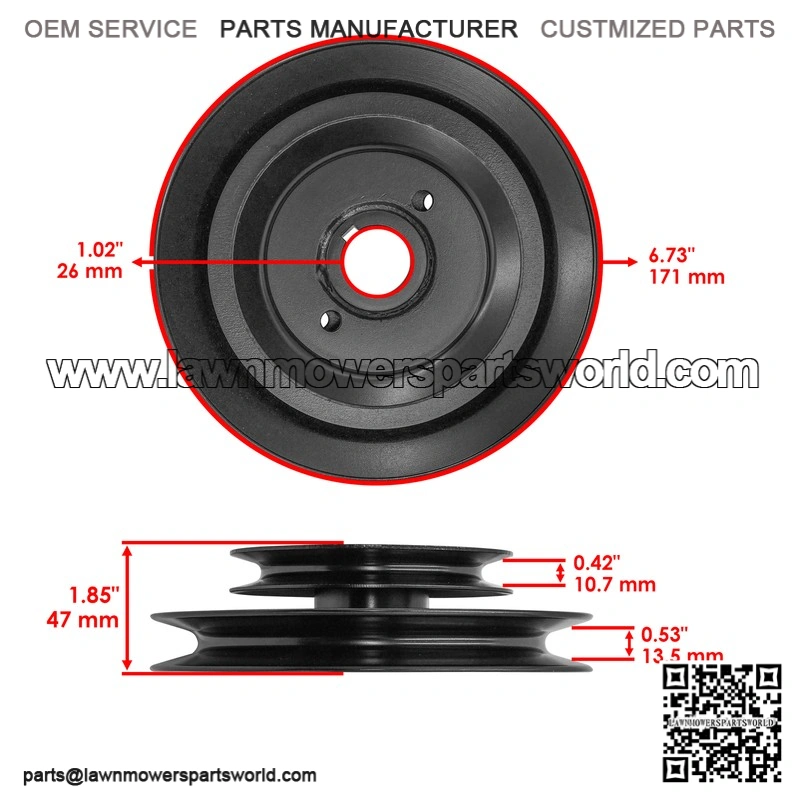

1 x Double Spindle Sheave Pulley:
07300026, 07329167
Inner Diameter: 1.02 in – 26 mm
Outer Diameter: 6.73 in – 171 mm
Width: 1.85 in – 47 mm

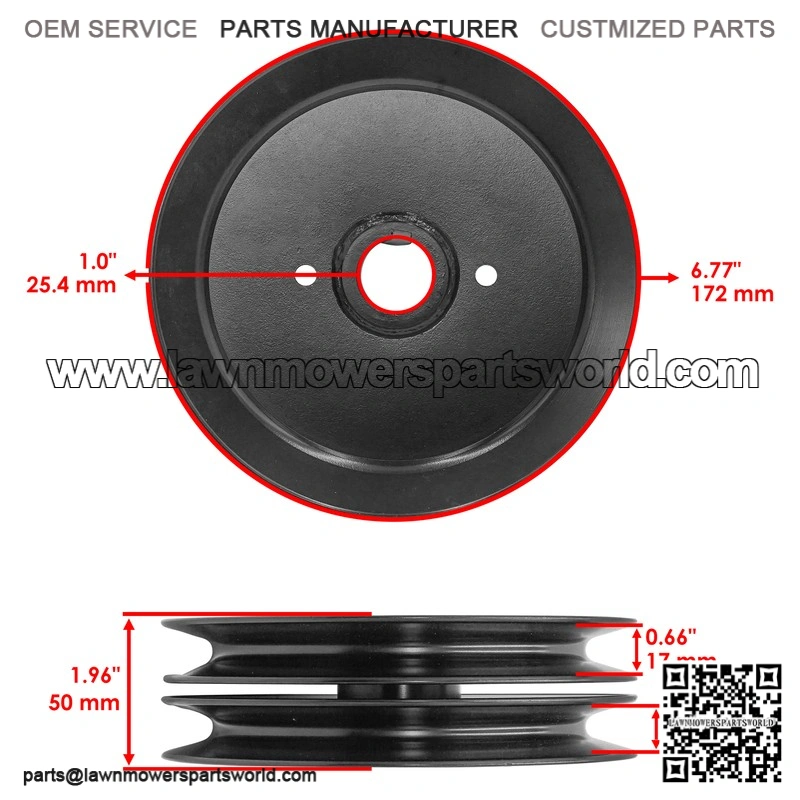

1 x Double Spindle Sheave Pulley:
07328867, 07300021, 59211500
Inner Diameter: 1.0 in – 25.4 mm
Outer Diameter: 6.77 in – 172 mm
Width: 1.96 in – 50 mm
1 x Spindle Sheave Pulley:
59211600, 07300022
Inner Diameter: 1.0 in – 25.6 mm
Outer Diameter: 6.74 in – 171.4 mm
Width: 1.57 in – 40 mm
1 x Primary Belt : 07200028
Length: 130 in – 3302 mm
Width: 0.58 in – 14.8 mm
Thicknes: 5/8 in – 15.875 mm
1 x Secondary Belt: 07200038
63 x 0.62 x 0.50 in – 1600 x 15.8 x 12.9 mm
