Premium Quality Replacement Part
Spindle Splined Bushing
Compatible with Exmark Models:
Turf Ranger Front Mount Mower
FMD524 – 52″ (SN: 510000 – 599999) (2005)
FMD604 – 60″ (SN: 510000 – 599999) (2005)
Turf Tracer Front Mount Deck
FMD524 – 52″ (SN: 000600000 – 000669999) (2006)
(SN: 000720000 – 000789999) (2008)
(SN: 000790000 – 000849999) (2009)
FMD604 – 60″ (SN: 000060000 – 000669999) (2006)
(SN: 000720000 – 000789999) (2008)
(SN: 000790000 – 000849999) (2009)
(SN: 000850000 – 000919999) (2010)
(SN: 000920000 – 000999999) (2011)
(SN: 312000000 – 312999999) (2012)
Turf Tracer Hydro Walk-Behind Mower
FMD524 – 52″ (SN: 510000 – 599999) (2005)
FMD604 – 60″ (SN: 510000 – 599999) (2005)
Front Runner Deck
FR524 – 52″ (SN: 600000 – 669999) (2006)
(SN: 720000 – 789999) (2008)
FR604 – 60″ (SN: 600000 – 669999) (2006)
(SN: 720000 – 789999) (2008)
FR724 – 72″ (SN: 720000 – 789999) (2008)
LAS23KC524 – 52″ Lazer Z AS Zero-Turn Mower, 23hp Koh. (SN: 600000 – 669999) (2006)
LAS25KC604 – 60″ Lazer Z AS Zero-Turn Mower, 25hp Koh. (SN: 600000 – 669999) (2006)
(SN: 670000 – 719999) (2007)
(SN: 720000 – 789999) (2008)
LAS25KC604N – 60″ Lazer Z AS Zero-Turn Mower, 25hp Koh. (SN: 720000 – 789999) (2008)
LAS28KA524 – 52″ Lazer Z AS Zero-Turn Mower, 28hp Kaw. (SN: 670000 – 719999) (2007)
Order Includes:

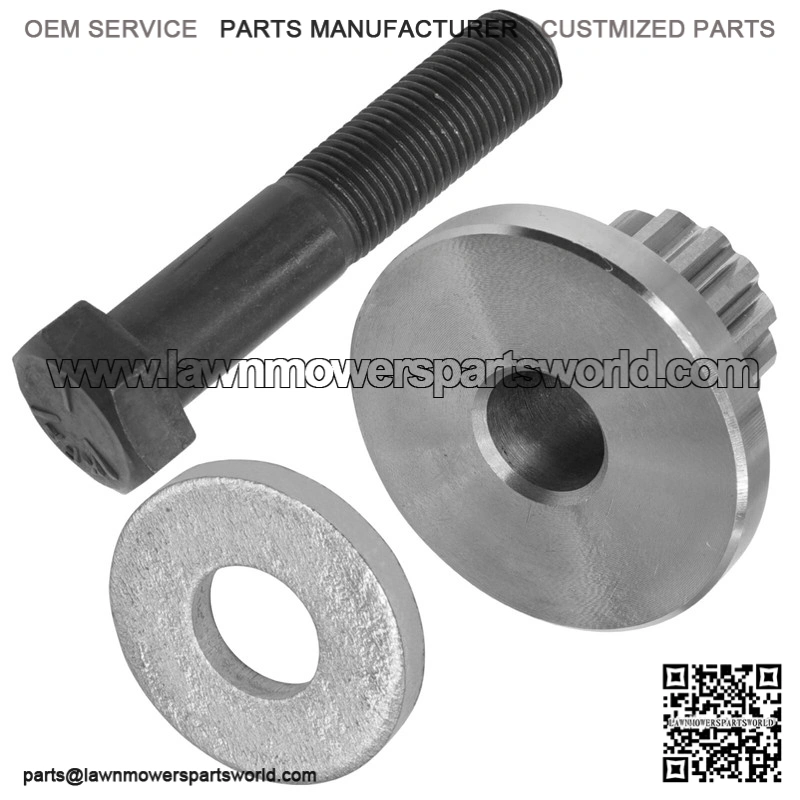

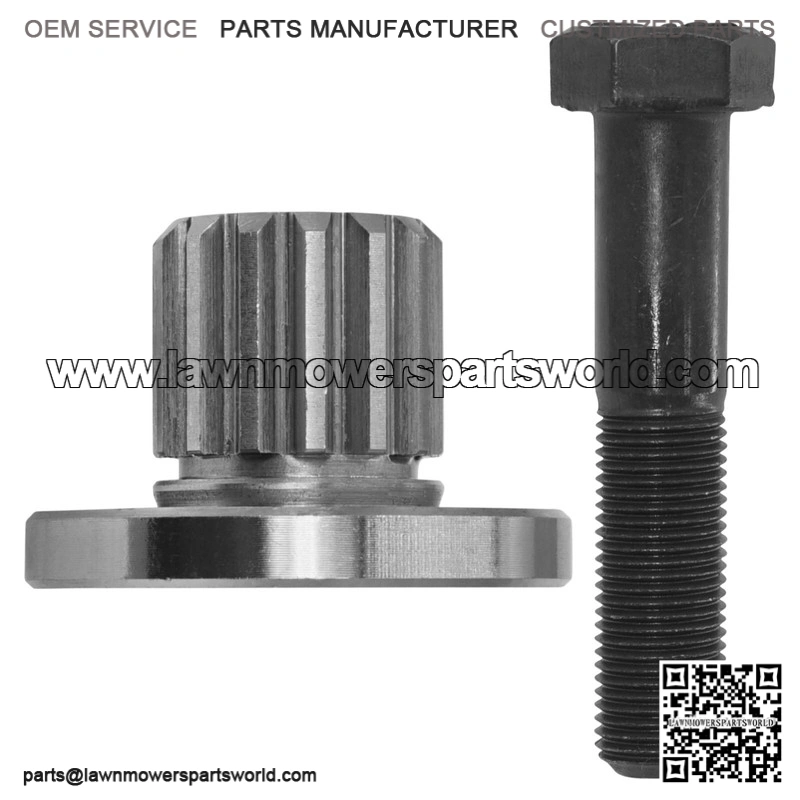

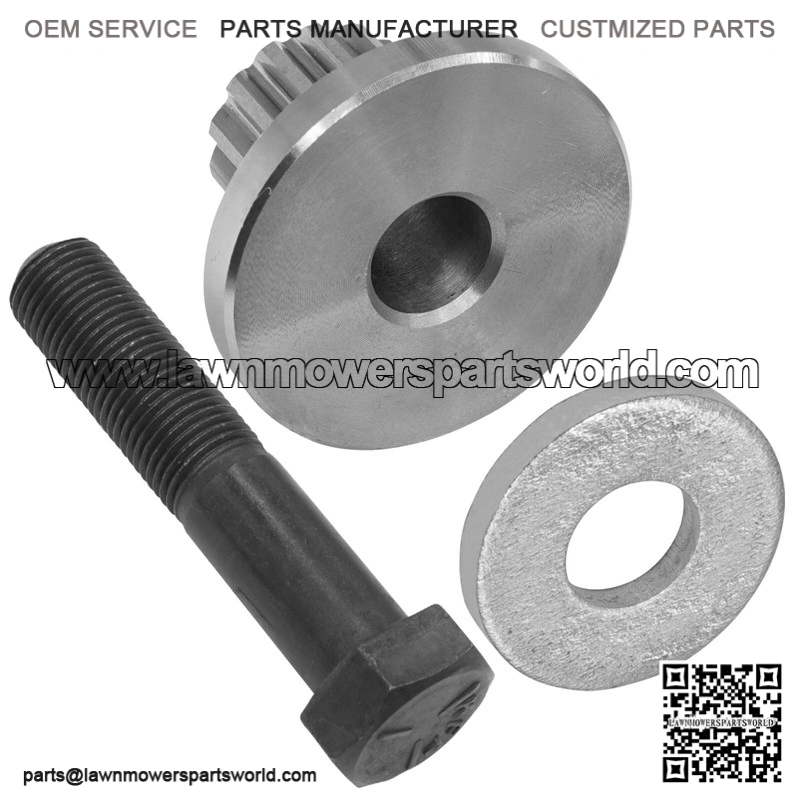

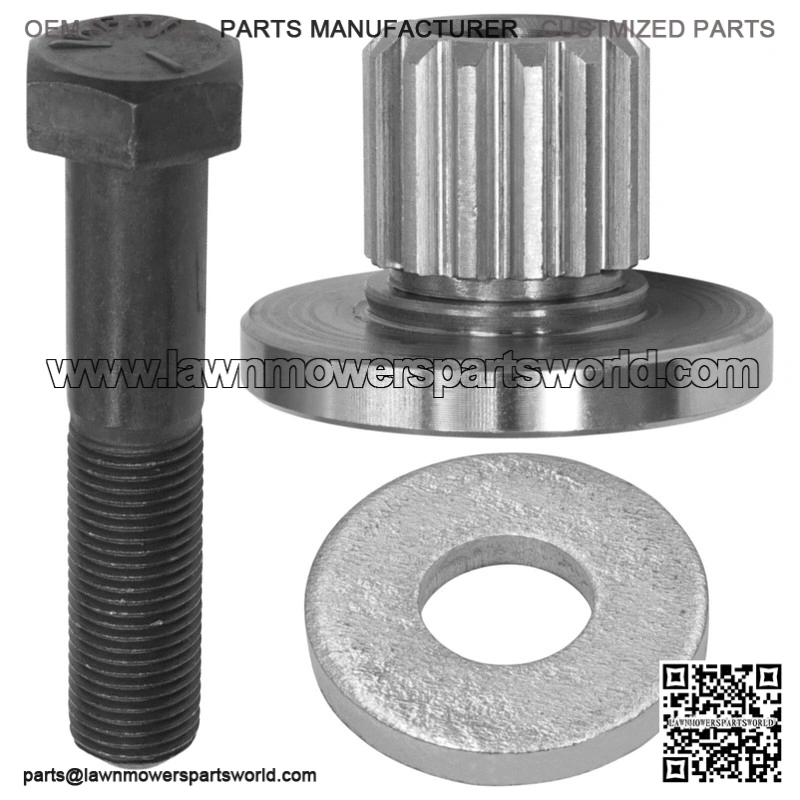

1 x Splined Bushing : 103-3037 , 400-095

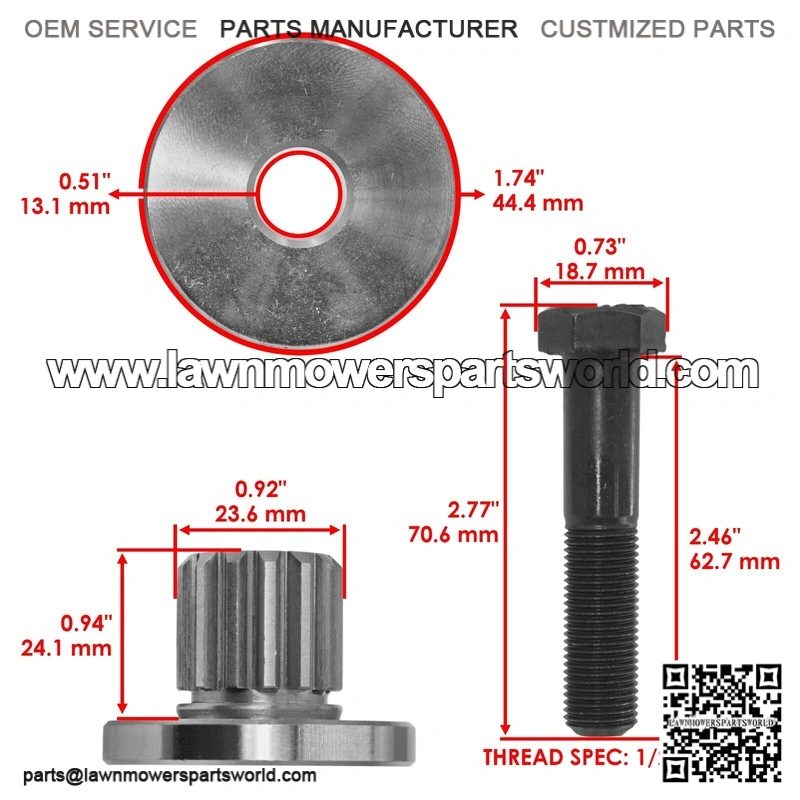

Inner Diameter: 13.1 mm – 0.51 in
Outer Diameter: 44.4 mm – 1.74 in
Width: 23.6 mm – 0.92 in
Height: 24.1 mm – 0.94 in
Thread Spec: 1/2 – 20
Height: 70.6 mm – 2.77 in
Width: 18.7 mm – 0.73 in
