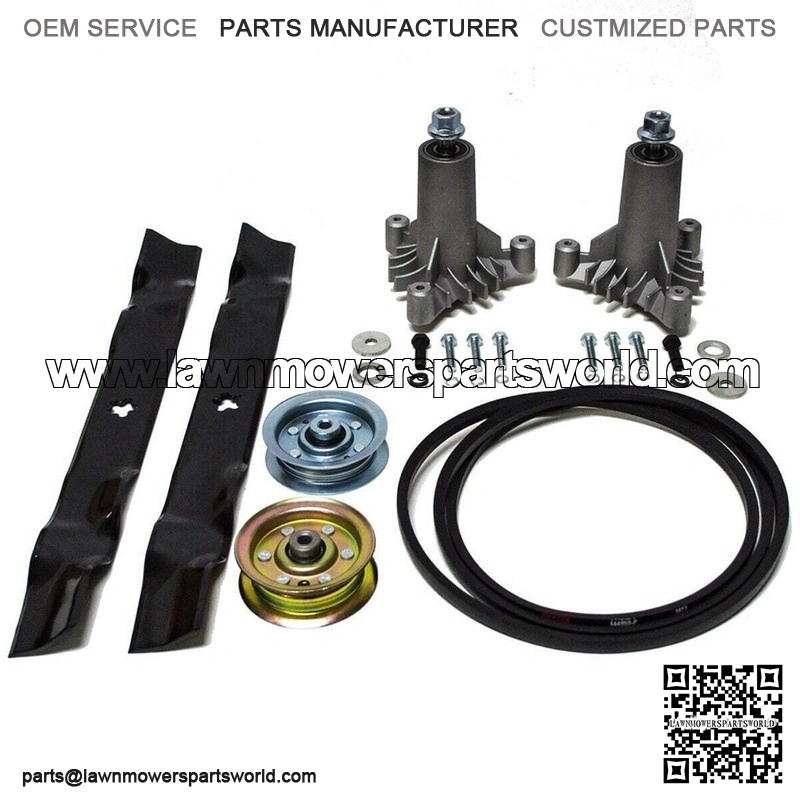

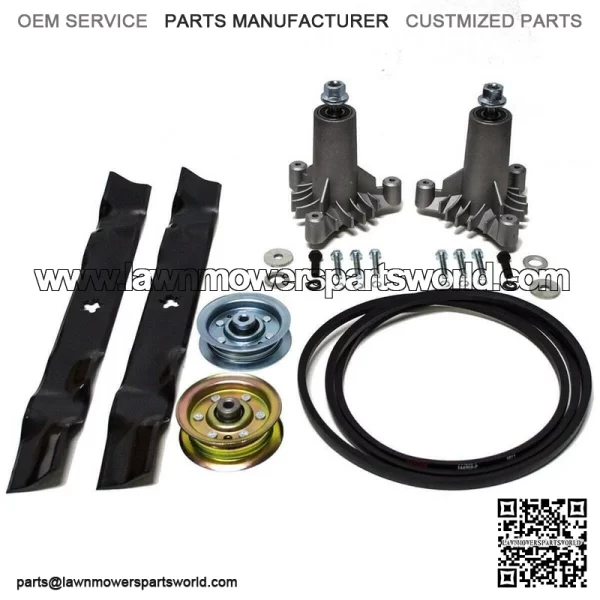

Kit Includes: (2) Spindles (2) Blades (2) Idler Pulleys (1) Belt
Spindle Replace OEM Part Numbers:
For AYP: 130794, 532130794
For Husqvarna: 532130794,
Spindle Fits Models:
Fits AYP 36″, 38″ and 42″ ventilated deck using star shaped center hole blades
Fits HUSQVARNA 36″, 38″ and 42″ cut ventilated deck using star shaped center hole blades
Fits AYP/ Fits ELECTROLUX 36″, 38″ and 42″ ventilated decks using star shaped center hole blades
Fits Sears 36″, 38″ and 42″ cut ventilated deck using star shaped center hole blades
Fits Craftsman 36″, 38″ and 42″ cut ventilated deck using star shaped center hole blades
Spindle Specifications
Includes all new hardware mounting bolts, blade bolt and washer, pulley nut and spacer
Mounting holes are pre-drilled and tapped.
Height: 7″
Blade Replaces OEM Part Numbers:
For Ariens: 21546095
For AYP: 127843, 134149, 138498, 138791, 138971, 139775, 24676, 422719, 424752, 521981601, 531005085, 531307223, 531307224, 532131323, 532134149, 532138498, 532138971, 532139775, 532422719, 532424752, 539110460, 777134149, 917127843, 917131323, 917138498MS, 917139775P, 91724676, 917532138498, 917532139775, 917532422719, 917532424752, 917539110460, 917777134149, 954636867
For Craftsman: 127843, 131323, 133128, 134149, 138498, 138791, 138971, 139775, 24676
For Husqvarna: 127843, 134149, 138498, 138791, 138971, 139775, 24676, 422719, 510417901, 521981601, 531005085, 531307223, 531307224, 532131323, 532134149, 532138498, 532138971, 532139775, 532422719, 539110460, 539113312, 577240401, 586230101, 777134149, 917127843, 917131323, 917138489MS, 917139775P, 91724676, 917532138498, 917532139775, 917532422719, 917539110460, 917777134149, 954636867
For Murray: 138971
For Poulan: 521981601, 531307223, 531307224, 532134149, 532138498, 532138971, 532139775, PP24004
For Snapper: 704429
Blade Specifications:
Center Hole: 5 pt. star
Outer Hole: 5/16
Center to Center: 3-1/8
Length 21-1/16
Width: 2.25
Thickness: 0.134
Offset: 1/8
Double Beveled
Belt Replaces OEM Part Numbers:
For Ariens: 21547082, 21547188
For AYP: 144959, 532144959
For Craftsman: 24690
For Husqvarna: 531300766, 532144959
For McCulloch: 532 14 49-59
Belt Specifications:
Belt Application: Deck Belt Type: Covered Width: 1/2″ Length: 95 1/2″
Belt Fits Models:
Fits AYP: 24H4B3A with 46″ deck
Fits Craftsman: most mowers with 38″ and 42″ decks
Fits Husqvarna: LTH1342, LTH1342A and YTHP1542
Idler Pulley Replaces OEM Part Numbers:
Fits Husqvarna: 532 17 34-37
Idler Pulley Specifications:
ID 3/8″ OD 3-7/8″ HEIGHT 1-1/4″
Idler Pulley Replaces OEM Part Numbers:
For AYP: 104360X, 131494, 173438
For Husqvarna: 532131494, 532173438
For John Deere: AM103480, AM37321
Idler Pulley Fits Models:
Fits AYP – 42″-44″ Decks
Idler Pulley Specifications:
Height: 1 1/8″ ID: 3/8″ OD: 3 7/8″ Material: Metal
