Deck Spindle & Pulley & High-Lift Blade
Compatible with Exmark Models:
Quest Series Zero-Turn Mower:
QSS708GEM42200 – 42″ 708 (SN: 315000000 – 315999999) (2015)
QSS725GKC42200 – 42″ (SN: 315000000 – 315999999) (2015)
QTE452CEM42100 – 42″ 452 (SN: 316000000 – 402082299) (2016-2017)
QTE708GEM42100 – 42″ 708 (SN: 315000000 – 315999999) (2015)
QTE708GEM42200 – 42″ 708 (SN: 400000000 – 402082299) (2017)
QTS708GEM42200 – 42″ 708 (SN: 315000000 – 402082299) (2015-2017)
QTS725CKC42200 – 42″ KT725 (SN: 315000000 – 315999999) (2015)
QZE600CKA42200 – 42″ FR600V (SN: 404314159 – 408644345) (2019-2020)
QZE702GEM42200 – 42″ 702 (SN: 404314159 – 408644345) (2019-2020)
QZE708GEM42200 – 42″ 708 (SN: 402082300 – 404314158) (2018)
Compatible with Toro Models:
TimeCutter Zero-Turn Mower:
74720 (SS4200) – 42″ (SN: 315000001 – 316999999, 400000000 – 999999999) (2015-2016)
74721 (SS4225) – 42″ (SN: 315000001 – 316999999, 400000000 – 999999999) (2015-2016)
74722 (SS4225) – 42″ (SN: 316000001 – 316999999, 400000000 – 999999999) (2016)
74723 (SS4250) – 42″ (SN: 315000001 – 315999999, 316000001 – 316999999) (2015-2016)
74725 (SS4200) – 42″ (SN: 400000000 – 999999999)
74760 (MX4250) – 42″ (SN: 315000001 – 316999999, 400000000 – 999999999)
74760 TA (MX4250) – 42″ (SN: 400000000 – 999999999)
74765 (MX4200) – 42″ (SN: 316000001 – 316999999) (2016)
74766 (MX4200) – 42″ (SN: 400000000 – 999999999)
74784 (SW4200) – 42″ (SN: 315000001 – 316999999, 400000000 – 999999999) (2015-2017)
74785 (SW4200) – 42″ (SN: 315000001 – 315999999, 400000000 – 999999999) (2015,2017)
74787 (SWX4250) – 42″ (SN: 315000001 – 316999999) (2015-2016)

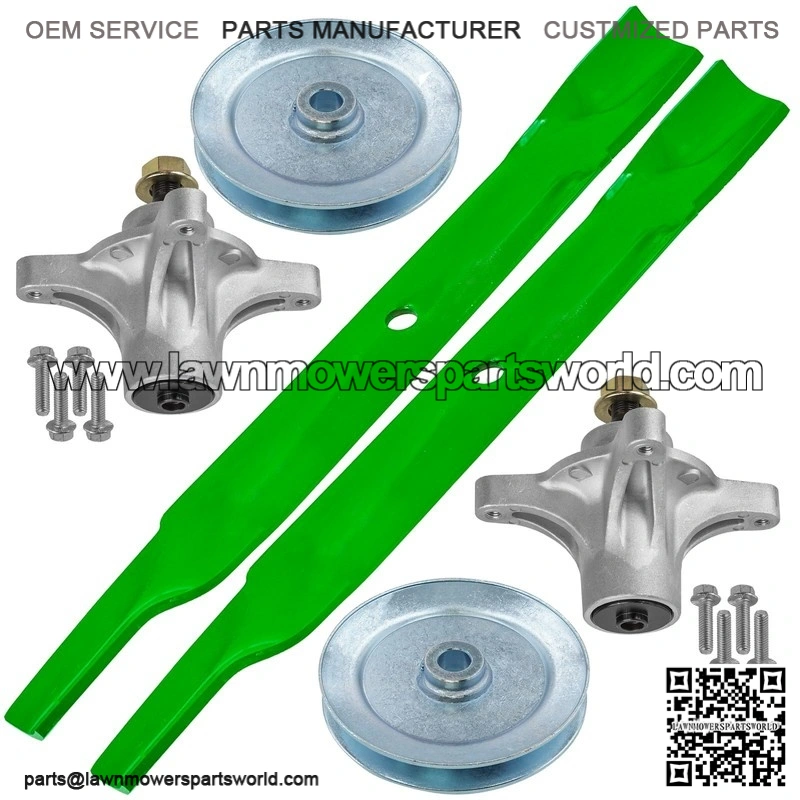

Order Includes:
2 x Spindle (139-3214, 117-7268, 117-7439, 120-6234, 121-0751, 121-9107)
Width: 140mm – 5.5in
Length: 158.8mm – 6.25in

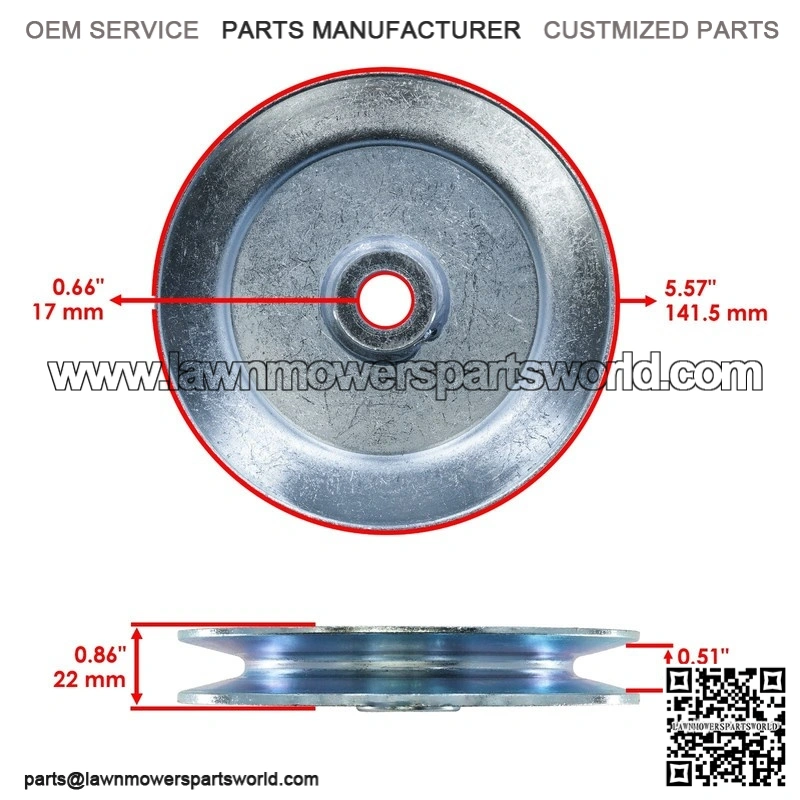

2 x Pulley (139-2433, 110-6864, 125-5574)
Width: 22mm – 0.86in
Inner Diameter: 17mm – 0.66in
Outer Diameter: 141.5mm – 5.57in

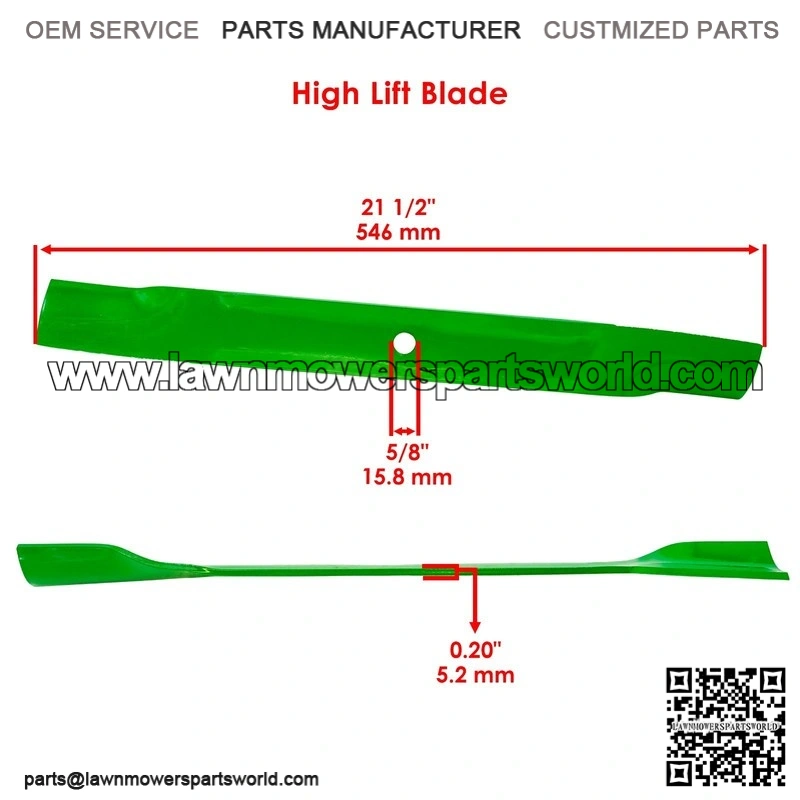

2 x Blade (131-3939-03)
Width: 5.2mm – 0.20in
Width: 5.2mm – 0.20in
Length: 550mm – 21.6mm
Height: 56mm – 2.20in
Central Hole Distance: 16.4mm – 0.64in
