Premium Quality Replacement Part
Deck Spindle Blade Bolts with Washers
Compatible with Scag Models:
36″ Walk-Behind Mower
SFW36-16BV 16hp Van. (SN: E5600001 – E5699999)
(SN: F9100001 – F9199999)
Freedom Z 36″ Zero-Turn Mower
SFZ36-18FS 18hp Kw. (SN: F3100001 – F3199999)
48″ Walk-Behind Mower
SFW48-16BV 16hp Van. (SN: E5700001 – E5799999)
(SN: F9200001 – F9299999)
Freedom Z 48″ Zero-Turn Mower
SFZ48-18FR 18hp Kw. (SN: K4800400 – K4899999)
SFZ48-18FS 18hp Kw. (SN: J8100001 – J8199999)
SFZ48-19KA 19hp Kw. (SN: D8600400 – D8699999)
SFZ48-20FS 20hp Kw. (SN: F3200400 – F3299999)
SFZ48-21FR 21hp Kw. (SN: K5000400 – K5099999)
SFZ48-22KT 22hp Koh. (SN: K5400400 – K5499999)
(SN: N7800001 – N7899999), (SN: R3300001 – R3399999)
SFZ48-24BS 24hp B&S (SN: J8200001 – J8299999)
SFZ48-26BS 26hp B&S (SN: D1500001 – D1599999)
(SN: D8500400 – D8599999), (SN: F3300400 – F3399999)
(SN: G2000400 – G2099999), (SN: H4600400 – H4699999)
SFZ48-600FS Kw. 600FS (SN: G1900400 – G1999999)
(SN: H4500400 – H4599999)
SFZ48H-24KT 24hp Koh. (SN: R7600001 – R7699999)
(SN: S6600001 – S6699999), (SN: S6600001 – S6699999)
(SN: V3000001 – V3099999)

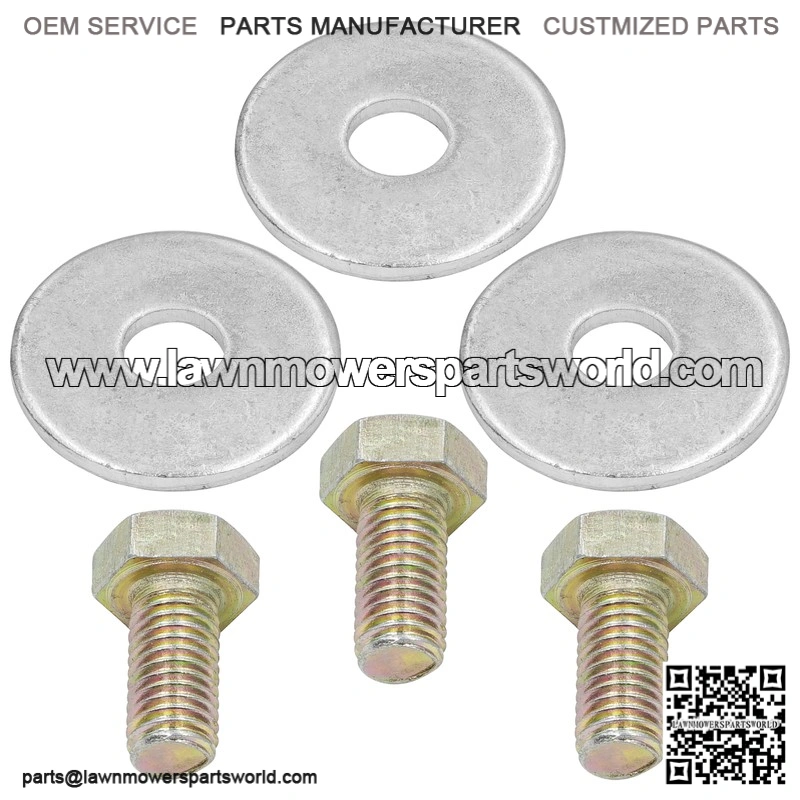

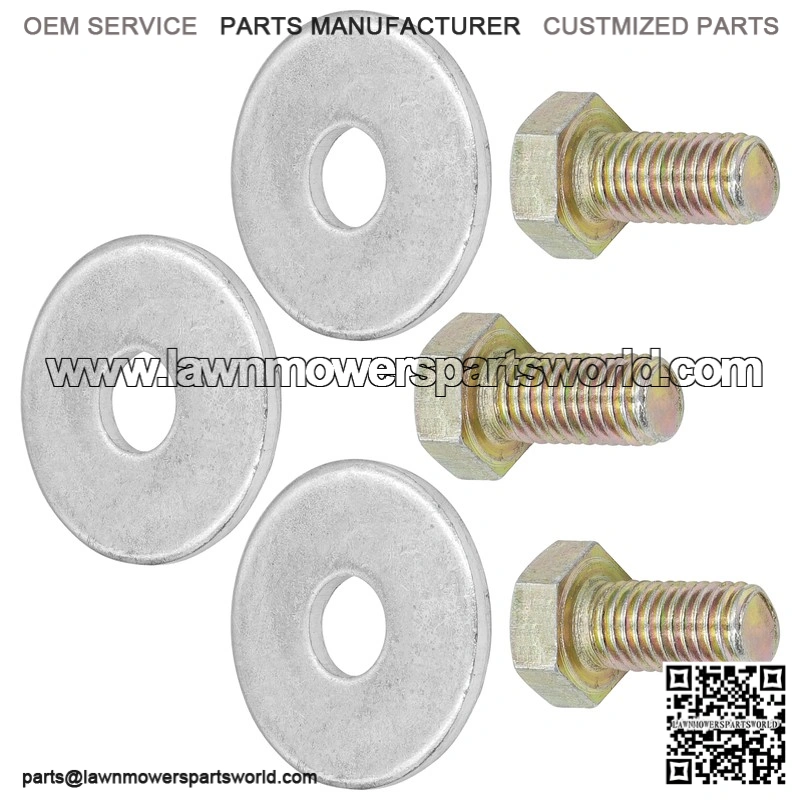

Order Includes :

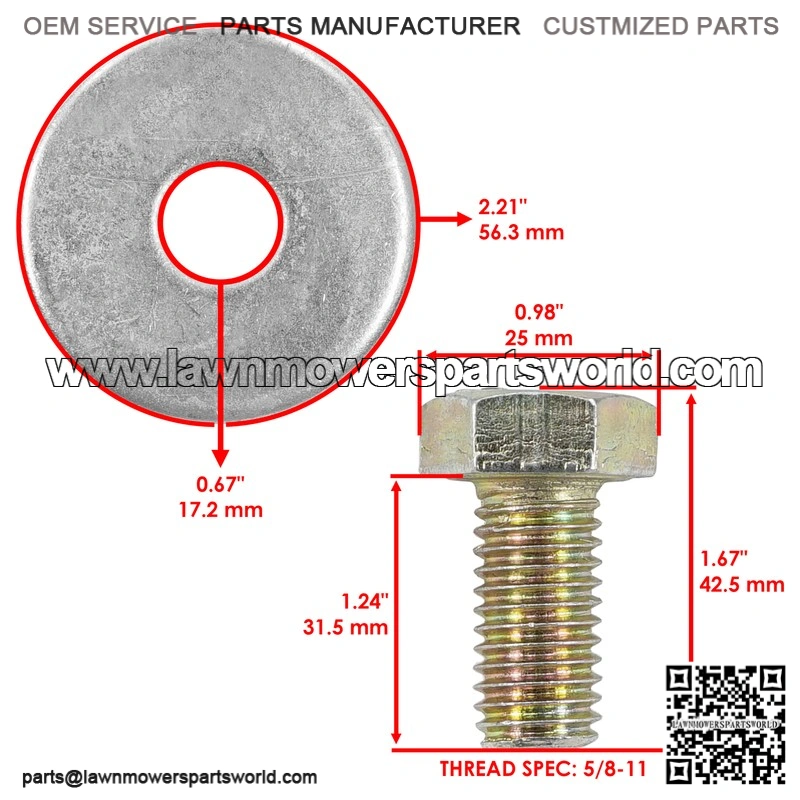

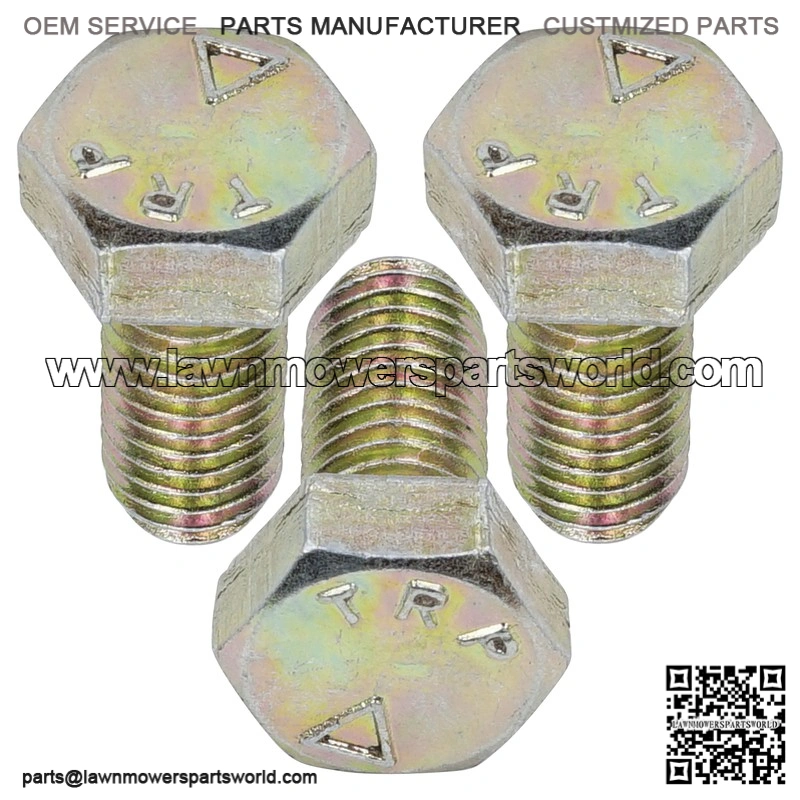

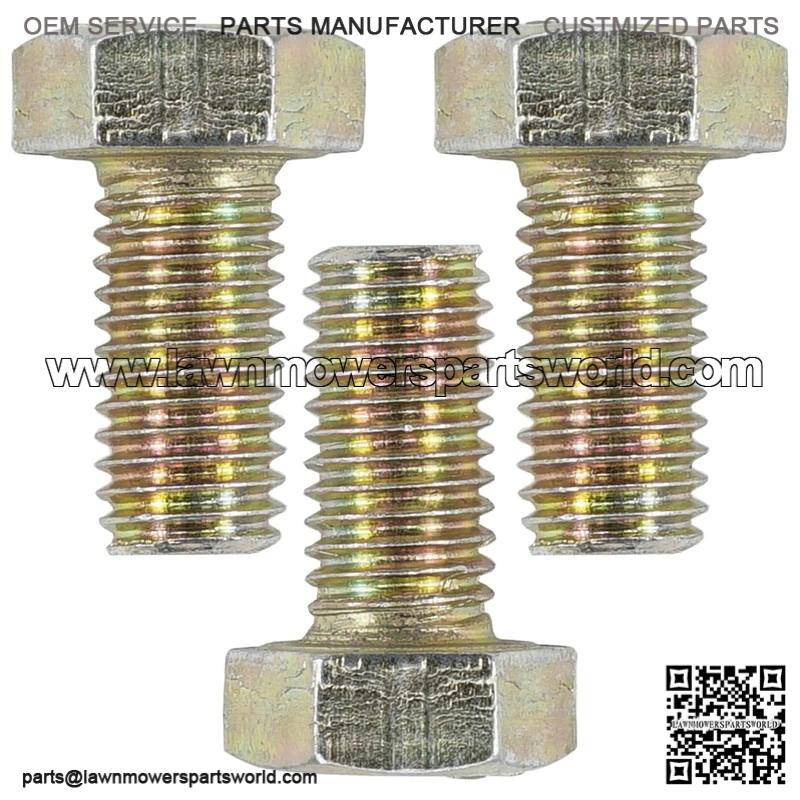

3 x Bolt: 4001-121
Length: 42.5 mm – 1.67 in
Stud Length: 31.5 mm – 1.24 in
Head Diameter: 25 mm – 0.98 in
Thread Size: 5/8-11
3 x Spring Washer: 04043-06
Inner Diameter: 17.2 mm – 0.67 in
Outer Diameter: 56.3 mm – 2.21 in
Spindle Part Number: 462014, 461950
Blade Part Number: 481707, 481706, 482877, 82878
