Premium Quality Replacement Part
Deck Blade High-Lift with Bolt
Compatible with Ariens:
Zoom 40″ Zero-Turn Mower:
915035 (1640) – 16hp B&S (SN: 000101 & Above)
915043 (1540) – 15hp B&S (SN: 000101 – 004999)
915043 (1540) – 15hp B&S (SN: 005000 & Above)
915051 (1640) – 16hp B&S (SN: 000101 – 004999)
915051 (1640) – 16hp B&S (SN: 005000 & Above)
915065 (1540) – 15hp Kohl. (SN: 010000 & Above)
915067 (1740) – 17hp Kohl. (SN: 010000 & Above)
915075 (1640) – 16hp Kohl. (SN: 020000 – 024999)
915075 (1640) – 16hp Kohl. (SN: 025000 & Above)
915077 (1840) – 18hp Kohl. (SN: 020000 – 024999)
915043 (1540) – 15hp B&S (SN: 005000 & Above)
915502 (1540) – 15hp Kaw. (SN: 005000 – 009999)
Zoom 44″ Zero-Turn Mower:
915037 (1844) – 18hp B&S (SN: 000101 & Above)
915055 (1944) – 19hp Kohl. (SN: 000101 – 004999)
915055 (1944) – 19hp Kohl. (SN: 005000 – 009999)
915055 (1944) – 19hp Kohl. (SN: 010000 & Above)
Zoom 48″ Zero-Turn Mower:
915057 (2148) – 21hp Kohl. (SN: 000101 – 004999)
915057 (2148) – 21hp Kohl. (SN: 005000 – 009999)
915057 (2148) – 21hp Kohl. (SN: 010000 & Above)
915039 (2048) – 20hp B&S (SN: 000101 & Above)
Zoom 52″ Zero-Turn Mower:
915041 (2252) – 22hp B&S (SN: 000101 & Above)
915059 (2352) – 23hp Kohl. (SN: 000101 – 004999) (SN: 005000 – 009999)
915059 (2352) – 23hp Kohl. (SN: 010000 & Above)
Mini-Zoom 40″ Zero-Turn Mower:
915063 (1540) – 15hp Kohl. (SN: 000101 – 004999) (SN: 005000 – 019999)
(SN: 020000 & Above)
Compatible with Gravely Models:
Zero-Turn Mower:
915054 (Mini-ZT 1540) – 40″, 15hp Kohl. (SN: 000101 – 004999)
915054 (Mini-ZT 1540) – 40″, 15hp Kohl. (SN: 005000 – 019999)
915054 (Mini-ZT 1540) – 40″, 15hp Kohl. (SN: 020000 & Above)
915076 (ZT 1840) – 40″, 18hp Kohl. (SN: 035000 & Above)
915078 (ZT 2044) – 44″, 20hp Kohl. (SN: 035000 & Above)
915080 (ZT 2348) – 48″, 23hp Kohl. (SN: 035000 & Above)
915082 (ZT 2552) – 52″, 25hp Kohl. (SN: 035000 & Above)
915084 (ZT 2350) – 50″, 23hp Kohl. (SN: 000101 – 000999)
915086 (HVZ 1840) – 40″, 18hp Kohl. (SN: 000101 & Above)
915094 (ZT 2350) – 50″, 23hp Kohl. (SN: 000101 & Above)
915096 (ZT 2250) – 50″, 22hp Kohl. (SN: 000101 & Above)
915098 (ZT 1840) – 40″, 18hp Kohl. (SN: 000101 & Above)
915102 (ZT 2040) – 40″, 20hp Kohl. (SN: 000102 & Above)
915104 (ZT 2250) – 50″, 22hp Kohl. (SN: 000101 & Above)
915106 (ZT 2350) – 50″, 23hp Kohl. (SN: 000101 & Above)
915116 (ZT 2450) – 50″, 24hp B&S (SN: 000101 & Above)
915132 (ZT 2350) – 50″ (SN: 000101 & Above)
915034 (ZT 1640) – 40″, 16hp B&S (SN: 000101 & Above)
915400 (YJ 40) – 40″ (SN: 000101 & Above)
915401 (YJ 44) – 44″ (SN: 000101 & Above)
915402 (YJ 40) – 40″ (SN: 000101 & Above)
915403 (YJ 40) – 40″, 20hp Kohl. (SN: 000101 & Above)
915404 (YJ 50) – 50″, 25hp Kohl. Courage (SN: 000101 & Above)

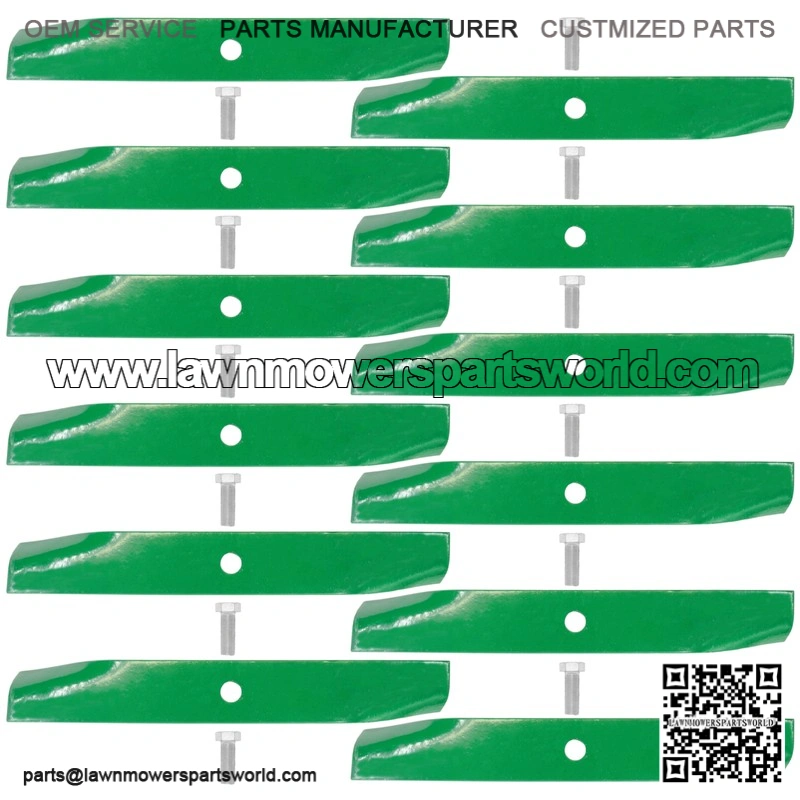

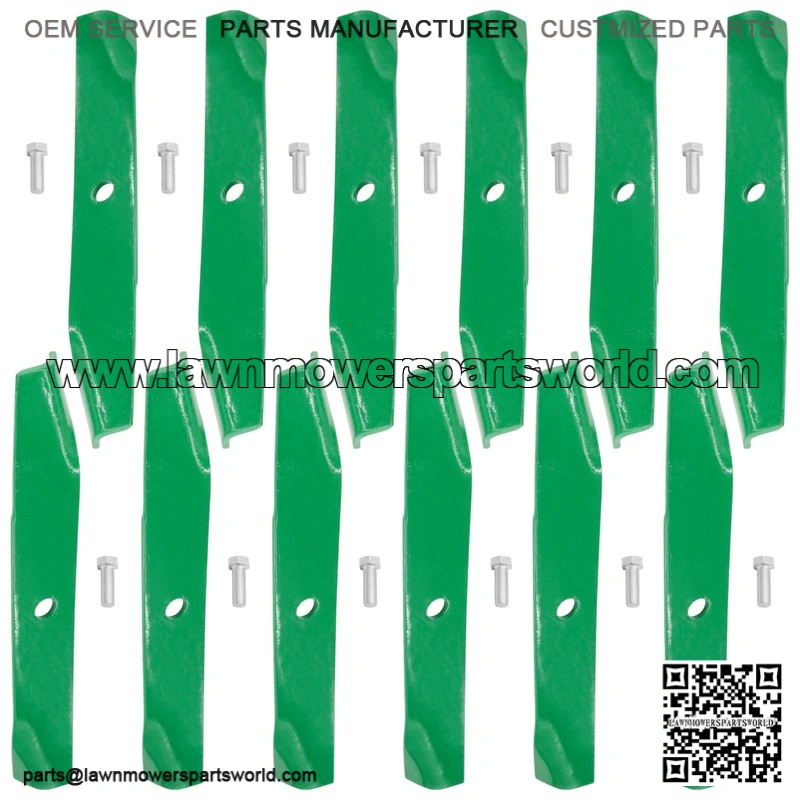

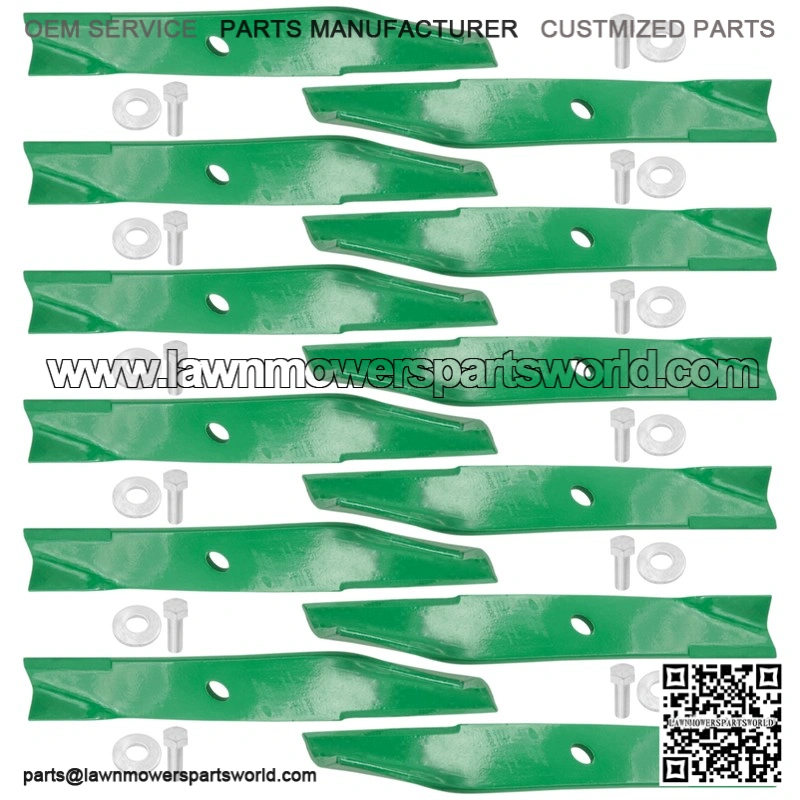

Order Includes:

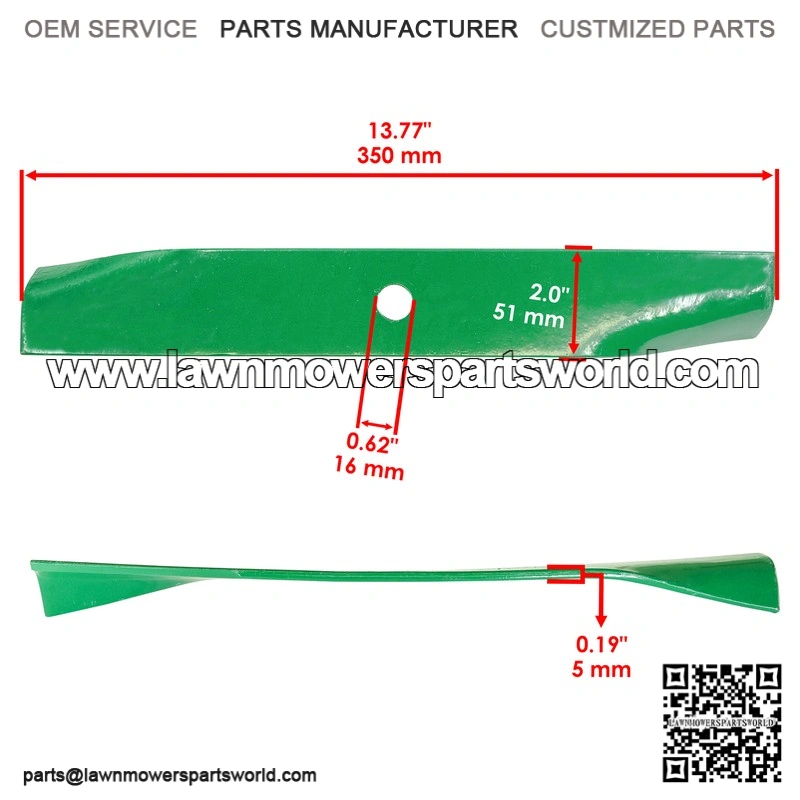

12x Blade: 03498400, 014668, 03498451, 08899800, 14668, 00173800
Width: 5 mm – 0.19 in
Height: 51 mm – 2.00 in
Length: 350 mm – 13.77 in

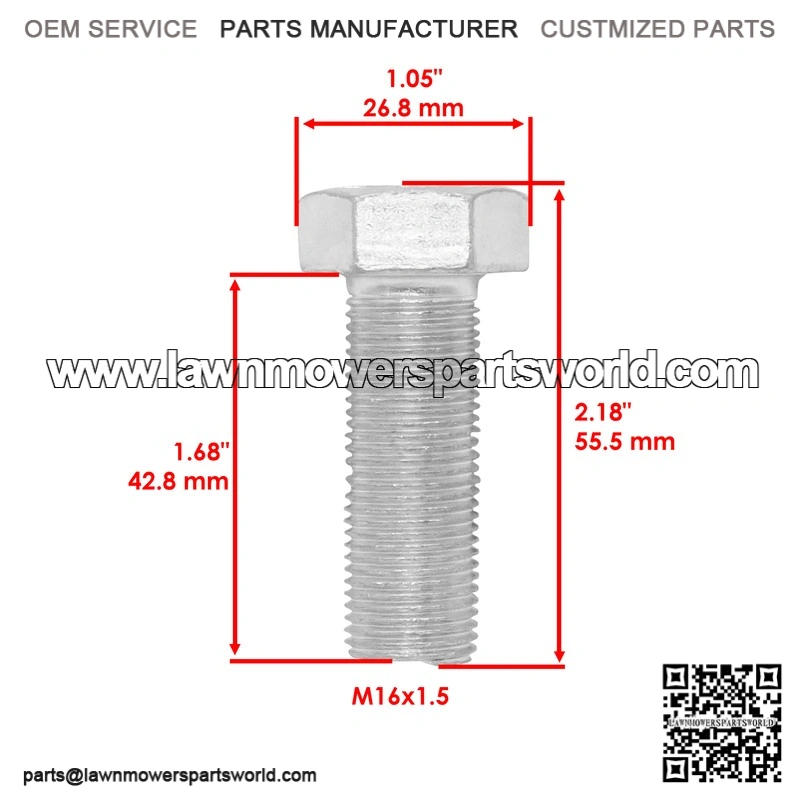

12x Bolt: 05901822, 05978900
Length: 55.5 mm – 2.18 in
Stud Length: 42.8 mm – 1.68 in
Head Diameter: 26.8 mm – 1.05 in
Threads Size: M16x1.5
