02961700 05901822 42-Inch Deck Blade with Bolt Kit for Gravely ZTXL42 ZTXL1842
02961700 05901822 42-Inch Deck Blade with Bolt Kit for Gravely ZTXL42 ZTXL1842
02961700 05901822 42-Inch Deck Blade with Bolt Kit for Gravely ZTXL42 ZTXL1842
Premium Quality Replacement Part
Deck Blade with Bolts
Compatible with Gravely Models:
42″ Zero-Turn Mower:
915110 (ZT XL 2042) – 20hp Kohl. (SN: 000101 & Above)
915118 (ZT XL 1842) – 18hp B&S (SN: 000101 & Above)
915134 (ZT XL 2042) – 20hp Kohl. (SN: 000101 & Above)
915160 (ZT XL 42) – Kaw. FR (SN: 035000 & Above)
915160 (ZT XL 42) – Kaw. FR (SN: 030000 – 034999)
915160 (ZT XL 42) – Kaw. FR (SN: 021000 – 029999
915160 (ZT XL 42) – Kaw. FR (SN: 020000 – 020999)
915160 (ZT XL 42) – Kaw. FR (SN: 010000 – 019999)
915160 (ZT XL 42) – Kaw. FR (SN: 000101 – 009999)
915154 (ZT XL 42) – 22hp Kawasaki (SN: 000101 & Above)
915118 (ZT XL 1842) – 18hp B&S (SN: 000101 & Above)
Compatible with Ariens Models:
42″ Zero-Turn Mower:
915145 – Zoom XL, 22hp Kawasaki (SN: 000101 & Above)
915163 – Zoom XL, 22hp Kawasaki (SN: 000101 & Above)
915137 (2042) – Zoom XL, 20hp Kohler (SN: 000101 & Above)
915111 (1842) – Zoom, 18hp B&S (SN: 000101 & Above)

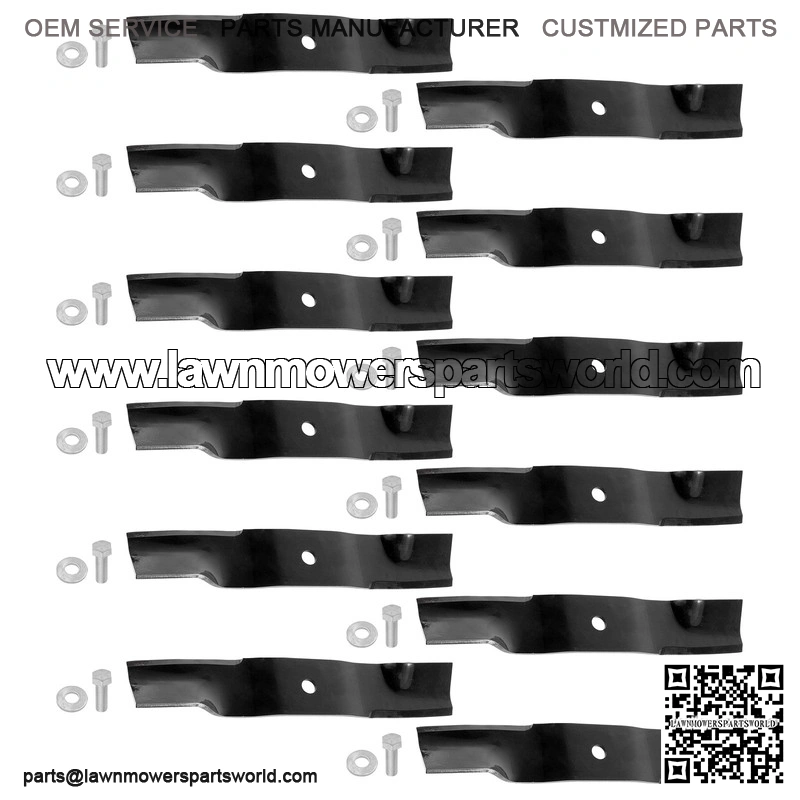

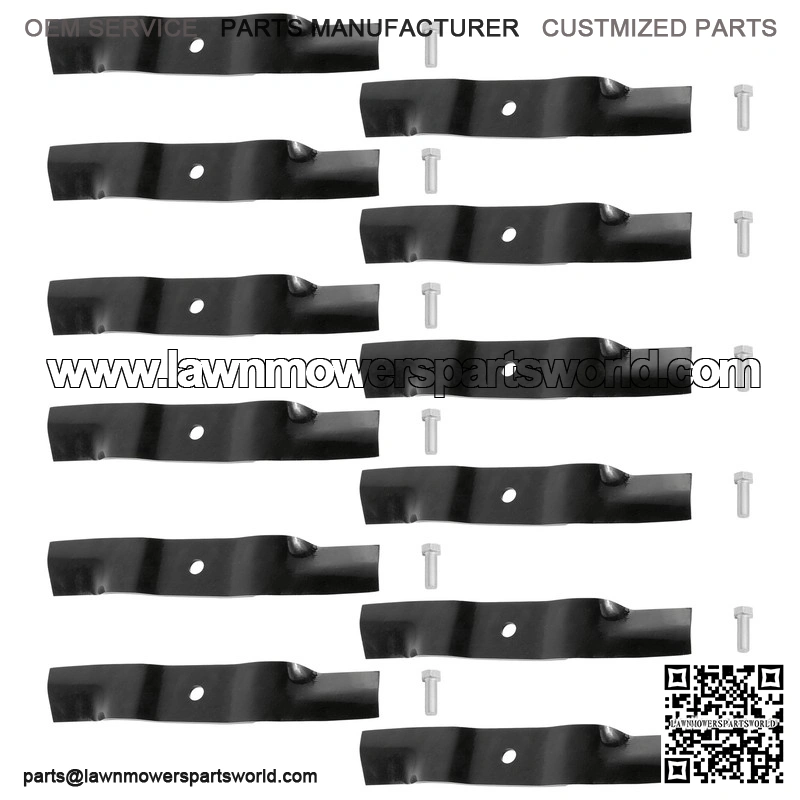

Order Includes:

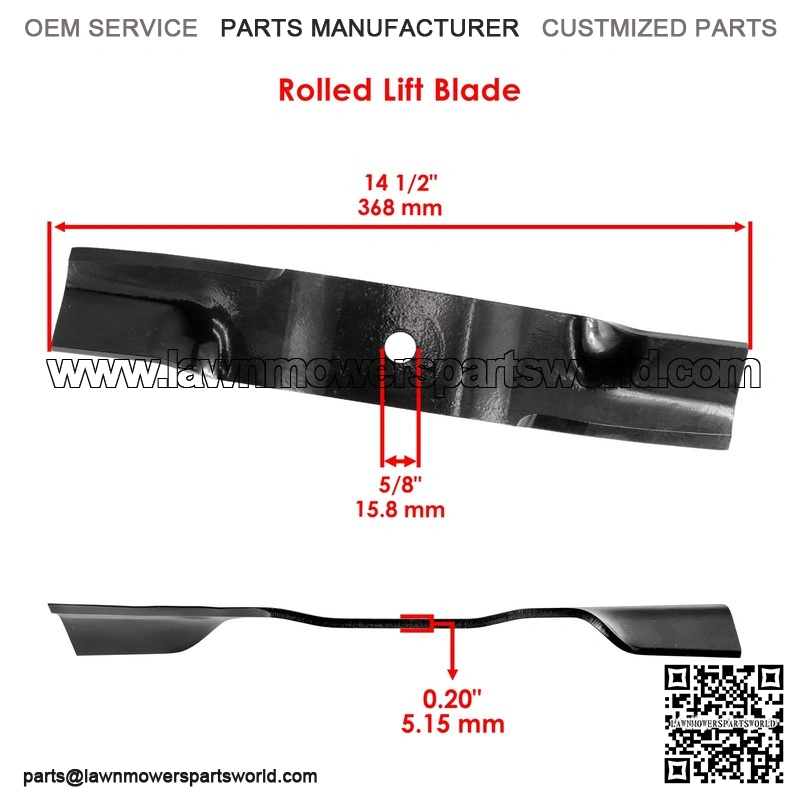

12x Deck Blade: 02961700, 2961700, 02961600
Length: 368 mm – 14 1/2 in
Thickness: 5.15 mm – 0.20 in
Center Hole: 15.8 mm – 5/8 in

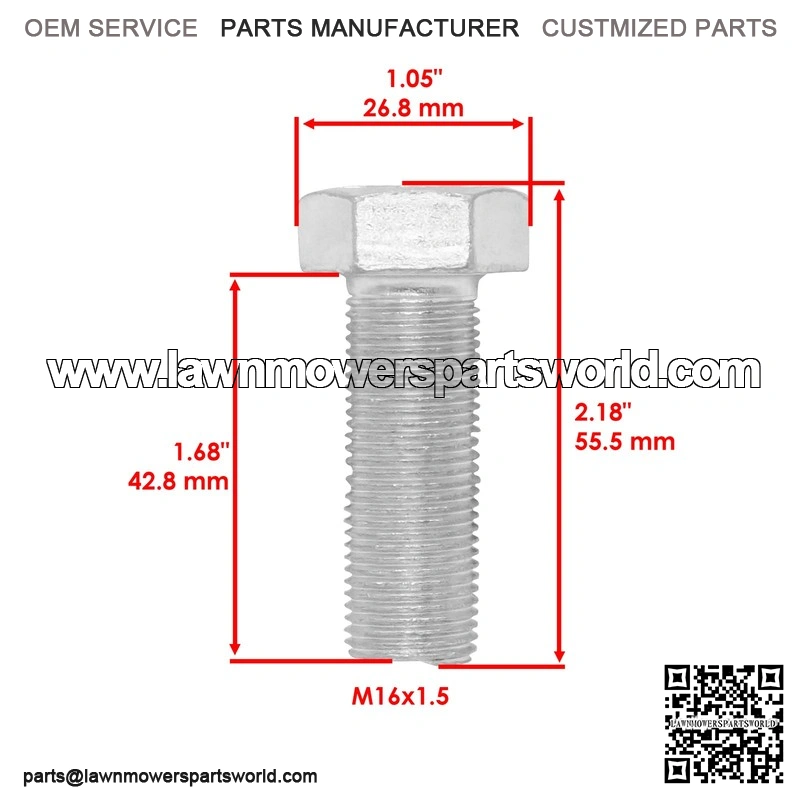

12x Bolt: 05901822, 05978900
Bolt Length: 2.18 in – 55.5 mm
Bolt Stud Length: 1.68 in – 42.8 mm
Bolt Head Diameter: 1.05 in – 26.8 mm
Threads Size: M16x1.5
Fits Spindle: 51510000, 61543800
